Koma Elektronik

Notes: Simple Envelope Follower in 1U format.

Insert an audio signal and extract a corresponding CV from it.

Additionally you get a gate output. Try using it with any type of signal!

Dimensions: 8 HP, 23 mm deep, module is a 1U tile

Current Draw: 56 mA +12V, 2 mA -12V

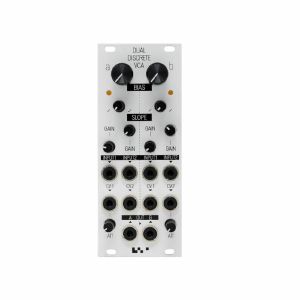

Notes: The KOMA Dual Discrete VCA offers two independent high quality VCA channels, both built up out of discrete transistor cells with low CV and audio bleed, very low noise and distortion. The VCA's feature set also enables you to experiment with the linear/exponential response curve, changing the dynamics of your sound. Play around with the gain settings for creative distortion effects in the classic KOMA style:

High quality sound by default, noise by choice!

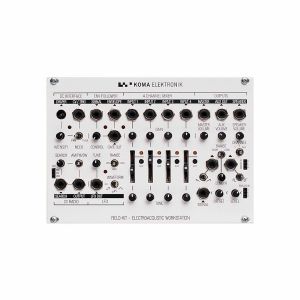

Notes: A starting point for experimental fun, the Field Kit allows you to patch motors, sensors, contact mics and radio signals into your Eurorack system. Get creative!

Supplier's Notes:
Play with Motors, Sensors, Contact Microphones, Radiosignals! The Field Kit was funded through the community at Kickstarter and now available on the KOMA website and elsewhere. The Field Kit is more fun with the right tools! You could add an Expansion Pack!

This is the assembled EURORACK version of the Field Kit.

Includes:

Field Kit Eurorack version
10pin ribbon power cable
4 screws, 4 nylon washers
Book/manual "50 Ways to Use the Field Kit"

Dimensions
36 HP

Current Draw
850 mA +12V

Notes: This new device is a powerful new CV controlled effects unit for your electronic music setup and pairs extremely well with the KOMA Field Kit.

- Looper
- Frequency Shifter
- Sample Rate Reducer/Bitcrusher
- Digital Delay
- Analogue Spring Reverb
- 4 Channel VCA Mixer
- 4 Step Mini Sequencer
- Envelope Generator

All of this, combined with the new 4 Channel CV Interface which allows you to route four CV signals throughout the device, means an incredible control over sound and timbre and a great addition to your mobile performance rig.

The Field Kit FX is built up from 7 separate functional blocks all focused on mangling and changing incoming audio and CV signals. They are designed to operate together as a coherent addition to our Field Kit Electroacoustic Workstation or alternatively together with other pieces of music electronics with the ability to use control voltage signals.

Notes: FM Radio in 1U format.

Use it as a crazy oscillator, infinite sample generator or just listen to the news during your office break.

Use the Chaos Input (CV) to automate to scan the FM band for radio signals and use the radio as a creative tool.

Width: 8HP
Height: 1U
Depth: 23mm
Current Draw: -12V: 2mA +12V: 56mA

Notes: A simple and compact 1U module for hands-free control, the Kommander generates CV and gate signals based on your hand's proximity to the infrared sensors. Cheap, fun and effective.

Supplier's Notes
An infrared motion controller that makes controlling your modules intuitive and fun. The KMNDR measures the distance to other objects (e.g. your hand) and sends a CV and gate signal.

This will allow you to interact with your modular system in a fun and intuitive way, create complex synth sounds, trigger a drum machine and "play" your modules.

Just plug the KMNDR into your synthesizer and create! The KMNDR ships with a 10-pin power connector.

Meet the KMNDR: our new compact sibling of the renowned KOMMANDER. This infrared X-Y motion controller is about to revolutionize the way you interact with your modular synthesizer.

Designed to make module control both intuitive and enjoyable, the KMNDR transforms physical gestures into musical magic. By simply measuring the distance to objects like your hand, it sends out CV signals ranging from 0 to 10 volts, alongside a 10V gate output, enabling a tactile and expressive approach to music creation.

Whether you're looking to craft complex synth landscapes, trigger rhythms on a drum machine, or "play" your modules as if they were traditional instruments, the KMNDR is your gateway to a new realm of musical expression. Its plug-and-play functionality means you can seamlessly integrate it into your setup, opening up endless possibilities for innovation and performance.

The KMNDR is not just about functionality; it's about bringing fun back into music production. It ships ready-to-use with a 10-pin power connector, ensuring you can dive straight into creating the moment it arrives. Prepare to engage with your modular system like never before. With the KMNDR, your hands are not just making music; they're creating an experience. BOOM!

Dimensions: 8 HP, 23 mm deep
Module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V, 0 mA 5V

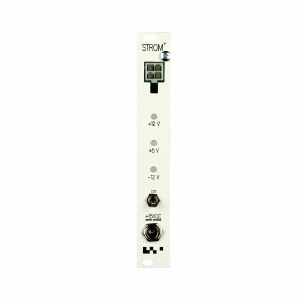

Notes: Strom+ is a strong, reliable and safe 4HP power solution for your modular system. The Strom+ power module includes many safety mechanisms to prevent your modules from being damaged. These include most importantly short-circuit protection, overvoltage protection and a replaceable main input fuse. See the full list below.

Strom+ also offers a current sensing technology that indicates current consumption of your system. LEDs of each rail will turn orange then red, when current consumption reaches or crosses the maximum load of that rail.

Strom+ has extremely low ripple, even under full load. This means better sound and stability for your modules.

One module can power multiple skiffs via Strom Passive Module, a Strom Connector Cable, or a KOMA Strom Busboard.

Technical Specifications

Inputs and Outputs

Output: 1.5A @ +12V | 1.5A @ +5V | 1.0 A @ -12V
Input: 15V, 4.6 A (center positive)

Safety Mechanisms

Replaceable input fuse. Protects the wall-plugged adapter. The KOMA Strom AC/DC adapter actually has its own protection mechanisms and will itself shutdown in most cases before the input fuse trips.
Input overvoltage. Strom+ works up to specification from 15V - 20V input and works out of specification up to 28V input.
Input reverse polarity protection
Output overvoltage protection
Output short-circuit protection
Output over current protection
Output undervoltage protection
All above output protections independent for each rail. If any rail fails, the whole module shuts down.
Connectors and Controls

Main DC-Input (15 VDC)

On/Off switch
Front panel connector to a passive Strom module
2 standard Eurorack 16-pin connectors (for modules or a flying busboard)
Back panel Strom connector to solid busboards

Dimensions

4HP
48mm without Eurorack power connector connected (distribute power via Strom connector cable)
52mm with Eurorack power cable connected

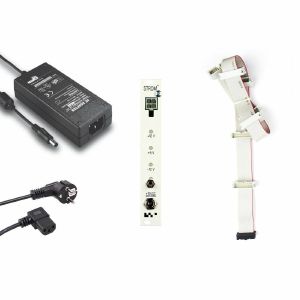

Notes: The KOMA STROM+ Bundle is a great and cost effective power solution for your Eurorack case. The Bundle pack includes a high-quality CINCON adapter, STROM+ power module and a flying bus board. STROM + offers a current sensing technology so you have your total power consumption under control at all times!

Technical Specifications

KOMA STROM Module:

Output: 1.5A @ +12V | 1.5A @ +5V | 1.0 A @ -12V
Input: 15V, 4.6 A (center positive)

Safety Mechanisms

Replaceable input fuse. Protects the wall-plugged adapter. The KOMA Strom AC/DC adapter actually has its own protection mechanisms and will itself shutdown in most cases before the input fuse trips.
Input overvoltage. Strom+ works up to specification from 15V - 20V input and works out of specification up to 28V input.
Input reverse polarity protection
Output overvoltage protection
Output short-circuit protection
Output over current protection
Output undervoltage protection
All above output protections independent for each rail. If any rail fails, the whole module shuts down.

Connectors and Controls

Main DC-Input (15 VDC)
On/Off switch
Front panel connector to a passive Strom module
2 standard Eurorack 16-pin connectors (for modules or a flying busboard)
Back panel Strom connector to solid busboards

Dimensions

4HP
48mm without Eurorack power connector connected (distribute power via Strom connector cable)
52mm with Eurorack power cable connected
Flying Busboard:

7 Standard Eurorack Power Connectors (to connect modules)
CINCON AC/DC Adapter:

Input Voltage: 90 VAC to 264 VAC
Output Power: 70W
Output Voltage: 15 V
Output Current: 4.65 A
DC Output Connector: 2.5 mm Barrel Plug
DC Output Lead Length: 1.22 m

Notes: The Koma Elektronik SVF-201 is a state variable filter for the Eurorack modular synthesizer system. Its filter circuit is built up with optical parts (Vactrols) therefor delivering excellent studio audio quality and an unique warm analogue sound. The module uses parallel mounted PCBs so it can be used in skiffs as well as in big cases, the total depth is less than 4cm.

The unit comprises 4 x audio outputs that can be used independently of each other at the same time, a high pass, band pass, low pass and the unique first ever CV'able mix pass out. The mix pass out let's you sweep continuously through the other 3 outputs by means of a knob and control voltage. The SVF-201 offers an amazing sounding filter together with a well designed user friendly surface; a professional feeling inviting you to play it real good.

http://www.youtube.com/watch?feature=player_embedded&v=zocKuRNQSLw

Notes: LFO utility in 1U format, small and straight forward.

Select between 3 different wave forms, chose a frequency between 0.03Hz to 36Hz and start modulating!

A Jumper in the back allow you to change the range.

WAVE >>> Chose a waveform for the oscillator. Select between square, triangle or a mixture of both.

SPEED >>> Set the frequency of the oscillator.

OUTPUT >>> The LFO output

Dimensions: 8 HP, 23 mm deep, module is a 1U tile in Intellijel format

Current Draw: 56 mA +12V, 2 mA -12V
