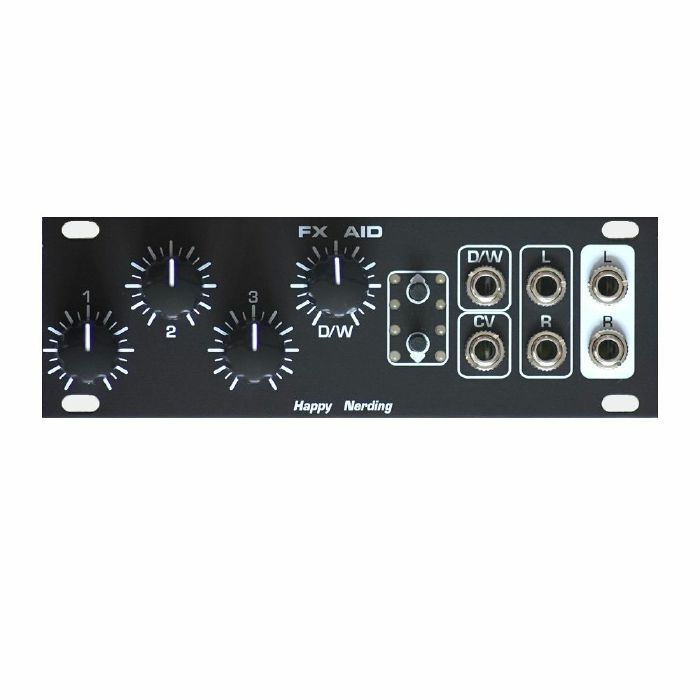

1U version of Happy Nerding's effects module, offering a total of 32 effects, with user-storable presets and CV control. Great value in a convenient package.

Supplier's Notes:
32 unique audio effects arranged in 4 banks of 8 effects. Three effect controls plus analogue Dry / Wet control with dedicated CV input. High quality stereo signal pass. Assignable CV input to effect controls or to Sample Rate reducer (changes internal clock). Four user storable presets - stores selected program and all three controls. Spin FV-1 based.

The last used effect, assigns and presets are always remembered.

32 effects are simultaneously available, but FX AID can be reflashed with other effects in any order.

Reflashing procedure is quite easy: playing 40 sec long .wav file of line level amplitude to CV input.

Reflashing mode: hold both buttons for 10 sec.

By default it runs on 32.77 kHz and, if sample rate reduction assign is used, this sample rate can be decreased down to 2000 Hz or brought up to 48 kHz.

Dimensions

24 HP
40 mm deep
Module is a 1U tile in Intellijel format

Current Draw

80 mA +12V
30 mA -12V
