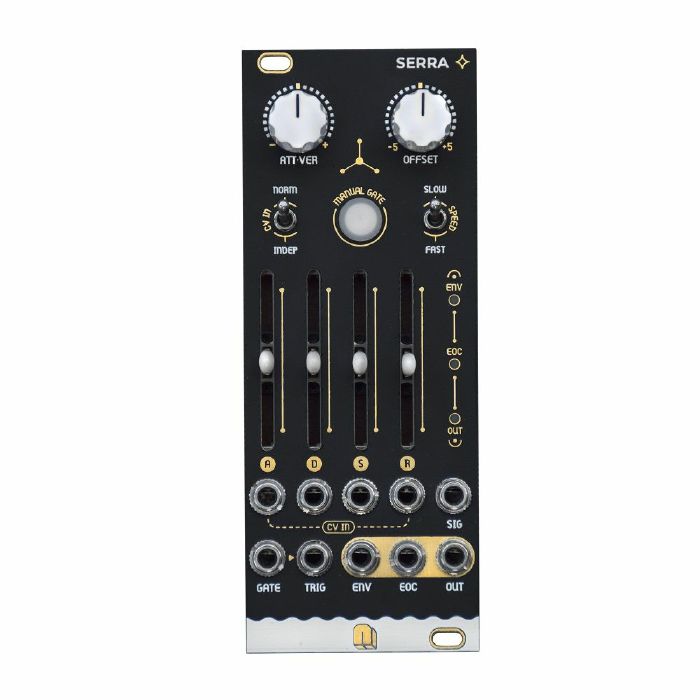

NANO Modules SERRA ADSR Envelope Module
SERRA generates a fully controllable 4 segment function (Attack, Decay, Sustain, Release) that can be adjusted in time with its own sliders and external CV inputs.
Tweak and modulate shapes until they fit your taste thanks to its onboard Attenuverter & Offset controls.
Tweak it further.
Nano Modules have made these built-in Attenuverter & Offset feature applicable to an external signal if connected to the SIG input, and then extracted via the OUT output.
Wide range.
As fast as 1 millisecond and as slow as 40 seconds. You can even improve this range by applying external CV to the selected stage.
Clear layout.
Accessible and comfortable to use, the controls are easy to handle and you can always see the envelope state through the built-in LEDs.
Specifications
Dimensions: 10HP - 50×128,5mm
Current 53 mA +12V / 39 mA -12V / 0 mA +5V
Input & Output Signals: + / -10V
Impedance Input: 10k - Output 10k
Materials: PCB and Panel - FR4 1,6mm
Depth: 20mm - Skiff friendly
Tweak and modulate shapes until they fit your taste thanks to its onboard Attenuverter & Offset controls.
Tweak it further.
Nano Modules have made these built-in Attenuverter & Offset feature applicable to an external signal if connected to the SIG input, and then extracted via the OUT output.
Wide range.
As fast as 1 millisecond and as slow as 40 seconds. You can even improve this range by applying external CV to the selected stage.
Clear layout.
Accessible and comfortable to use, the controls are easy to handle and you can always see the envelope state through the built-in LEDs.
Specifications
Dimensions: 10HP - 50×128,5mm
Current 53 mA +12V / 39 mA -12V / 0 mA +5V
Input & Output Signals: + / -10V
Impedance Input: 10k - Output 10k
Materials: PCB and Panel - FR4 1,6mm
Depth: 20mm - Skiff friendly
Read moreRead less
Specifications
| Module Type | Envelope Module |
