首页  商品  合成器模組  Sound Study  Sound Study Clouds Texture Synthesizer Module

Sound Study Clouds Texture Synthesizer Module FORTHCOMING

Click for better price or call
+44 20 7424 1960
(quote 1097328)
SOUND STUDY - Sound Study Clouds Texture Synthesizer Module
Product image
synth modules
Delivery
Despatched as soon as released
Features
Specs
Returns & refunds
Finance
  • Recording buffer duration: 1s (32kHz, 16-bit, stereo) to 8s (16kHz, 8-bit µ-law, mono). 4 quality settings.
  • Grain size: 16ms to 1s.
  • Maximum number of concurrent grains: 40 to 60 depending on recording buffer resolution.
  • Grain generation time-base: periodical, randomized, or externally clocked.
  • Grain envelopes: continuously variable between boxcar, triangle, Hann.
  • Playback modes: granular, microlooper/buffer-lock, time-domain pitch-shifter/time-stretcher (WSOLA), spectral.
  • 4-AP diffuser to post-process the granularized signal.
  • Post processing (blending) settings: dry/wet, random panning amount, feedback amount, reverb amount.
  • 4 memory locations for "frozen" recording buffers.
  • Freeze push-button.
  • Blend mode (or audio quality) selection button.
  • Load/save button.
  • Grain position, size and pitch knobs.
  • Input gain knob, -18dB to 6dB.
  • Grain density and texture knobs.
  • Multi-function "Blending mode" knob.
  • Buffer freeze gate input.
  • Grain generation trigger input.
  • Grain position CV.
  • Grain size CV.
  • Pitch-shifting/transposition 1V/Oct CV.
  • Dry/wet CV (or feedback, balance, reverb amount - depending on blend mode).
  • Grain density CV.
  • Grain texture/timbre CV.
  • 2-channel audio input (line-level, with pre-amplifier/attenuator).
  • 2-channel audio output (modular level).
  • Input impedances: 100k.
  • CV range: +/- 5V. CVs outside of this range are simply clipped.
  • Width: 18HP
  • Depth: 25mm
  • Current draw: +12V: 120mA/-12V: 10mA
Module TypeWaveform Generator

If you decide a product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.

Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth

To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

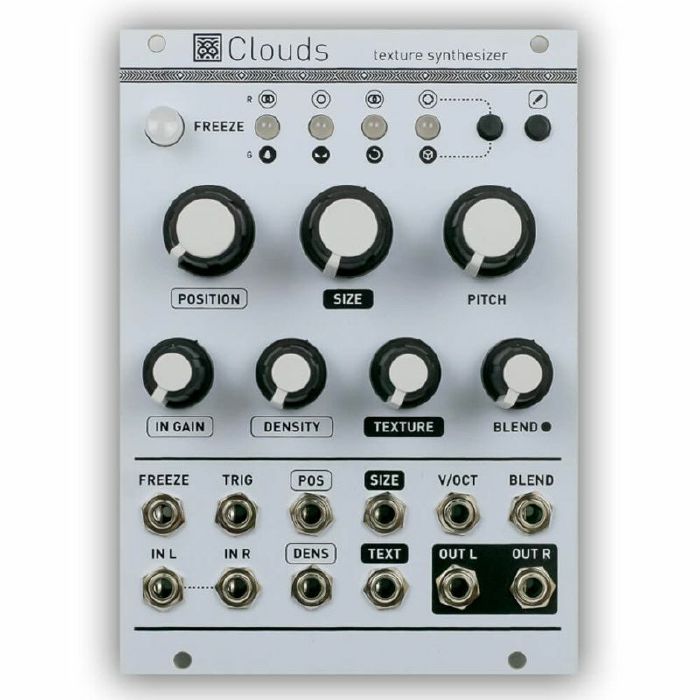

Sound Study Clouds Texture Synthesizer Module
Clouds is a granular audio processor. It creates textures and soundscapes by combining multiple overlapping, delayed, transposed and enveloped segments of sound taken from an audio recording buffer.

Clouds differs from other granular Eurorack modules in that it focuses on the real-time processing of audio sources from your modular system itself, rather than the playback of pre-recorded samples from a storage device. It rewards the freezing, fragmentation and dissolution of the unexpected instant, rather than the careful planning of what might very well not come.

Unlike granular sample players, Clouds is focused on the realtime granularization of incoming audio signals, and the acquisition of textures from them.

Classic controls such as grain position, size, and pitch are provided. Clouds can superimpose up to 16 grains simultaneously and thus create thick textures. Control over texture density, independently of grain size, is thus provided. An external trigger input allows grains to be seeded in sync with LFOs or rhythmic generators.

To provide a richer variety of timbres, Clouds allows the shape of the grain's envelope to be morphed - from sharp rectangular edges to a smooth bell curve. In addition, a diffusion network can further dissolves the edges of grains into blurry textures.

"Grain mesh" modes automatically adjust grain density, size, and the offset between successive grains in order to generate a continuous stream of audio that can be pitch-shifted / time-stretched in the manner of old-school samplers (or time-domain pitch / time processors).

Finally, to cover various applications of granular synthesis without the need for additional modules, Clouds' comes with four voltage-controlled "blend modes" for mixing and re-routing its output signal: VC dry / wet balance, VC channel crossfade, VC feedback, and VC reverberation.

Clouds' delay memory ranges from 1s to 8s depending on audio quality settings.
Read moreRead less
Specifications
Module TypeWaveform Generator
