Notes: With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It's the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.

Effortless Live Mixing:

LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere:

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favourite DAW for further mixing and editing.

Five Custom Monitoring Mixes:

Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW:

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.

Here's what comes included with the L-12:

- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide

Notes: Incredible value all-rounder from Zoom, the L-6 combines recording, mixing and performance features, with 10 studio-quality audio tracks, effects, MIDI and real-time sampling.

Supplier's Notes:
Small Just Got Very Big

The LiveTrak L6 is Zomo's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don't let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a 3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

MIDI Connectivity for Synths and Keyboards

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

Map parameter controls such as volume, pan, and EQ to outboard gear
Trigger sound pads and scene switching
Tempo sync delay and echo

Features

10-channel ultra-Compact digital mixer
2 XLR/TRS Combo inputs + 4-Stereo inputs
12-track simultaneous recording
MIDI In/Out for mixer control and USB MIDI interface
3 Scene memory for storing mixer and tempo setting
32-bit float multi-track recording to micro SD card
5 Internal Send Effects
2 AUX send outputs
4 Assignable sound pads (sample player)
3-Band EQ with MID freq control for each channel
Headphone output + Master output
Eurorack compatible
12-in / 4-out Audio interface
4 AA battery power operation or USB power

Specs
Input and output channels
Inputs MIC/LINE (mono) 2
LINE (stereo) 4
Outputs
AUX SEND (mono): 2
MASTER (stereo): 1
MONITOR (stereo): 1

Inputs

MIC/LINE:
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance:XLR: 3.8 kO or more, TRS: 39 kO or more
Maximum input level XLR: +4 dBu, TRS: +24 dBu
Phantom power: +48 V, Channel total of 10 mA or less

LINE

Connectors: 8 TS phone jacks (unbalanced)
Input impedance: 10 kO
Maximum input level: +9 dBu

Outputs

AUX SEND
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147 O

MASTER
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 O

MONITOR
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 O load)
Output impedance: 14.7 O

Buses

MASTER: 1
AUX SEND: 2
SEND EFX: 1

Channel strip

3 BAND EQ:
HIGH: 10 kHz, +/-15 dB, shelving
MID: 100 Hz - 8 kHz, +/-15 dB, peaking
LOW: 100 Hz, +/-15 dB, shelving

Level meters: 6 segments
Send effects: 5 types

Recorder

Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48 kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)

Audio interface

Input and output channels: Input: 12 channels, Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface: USB 2.0

Card reader: Mass storage class USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz - 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150O input

Power
4 AA batteries - Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17 : DC 5V/1A
USB bus power is supported.

Estimated continuous recording time using batteries
Alkaline batteries: About 3 hours
NiMH batteries (1900 mAh): About 3.5 hours
Lithium batteries: About 7 hours

12-track recording, phantom power off, headphones used (63O load), no MASTER output connections
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.

Power consumption 5 W maximum
Dimensions: 223 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only): 526 g
Weight (including batteries): 618 g
Note: 0 dBu = 0.775 Vrms

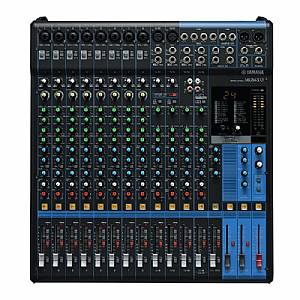

Notes: The Yamaha MG16 Analogue Mixer. Road Tough. Studio Ready.

The Yamaha MG16 is part of the third generation of renowned MG Series mixers. These compact mixing desks focus on giving you high quality sound for a wide variety of mixing environments. The Yamaha MG16 has the same mic pre amps as their high-end pro mixers. The new MG Series provides serious quality with the reliability and performance capabilities the series is known for.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

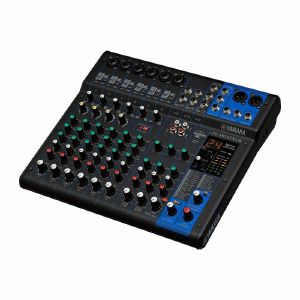

Notes: The Yamaha MG Series of mixers feature a design and construction that will handle the standard wear and tear of the active musician. Featuring the steel chassis that is impact resistant and powder coated, this mixer will take any bumps and scratches without it getting damaged or looking old. The sleek design does not compromise any part of the finished product. A state of the art design allows for convection cooling, meaning your power unit will not overheat your unit after continuous use. Separating the power supply from the analog circuitry inside the mixer allows for near silent background noise, allowing for a serious and high quality output sound. As well as this, the knob placement has been put above the chassis of the console, thus not damaging circuitry underneath should the device ever be dropped or mishandled.

The MG10 includes a number of features that make it stand out above the rest of compact mixers on the market. It has phantom power on the first four channel's class A preamps for any condenser microphones..These four channels also include a 3 band EQ and a high pass filter, allowing a lot of frequency control on such a small mixer. As well as this, three stereo channels for jack devices make up channels 5 through to 10. Outputs are aplenty on the MG10, featuring stereo jack and XLR outputs, as well as a stereo jack monitor and phones output for monitoring purposes.

On top of the smaller MG06, this mixer includes full adjustable panning on all channels, making it easy to give a fully stereo image when gigging. As well as this, the mixer also has an effects out/return function, allowing an external effects board to be added, and with full individual control of the FX level on each channel. As well as this, a compression knob has been added to channels 1 and 2, allowing for easy control over instruments or vocals with fluctuating volumes.

Notes: The new Yamaha MG20XU USB mixing desk has a full array of features for the professional band or music producer. Boasting 20 channels, a group of 24 effects, internal USB interface and 2 bus groups, this Yamaha mixer has everything you could need. Featuring faders instead of knobs of other versions, this MG20XU is more visual and easier to control. The included Cubase AI software also enables studio production straight out of the box.

The Yamaha MG Series of mixers feature a design and construction that will handle the standard wear and tear of the active musician. Featuring the steel chassis that is impact resistant and powder coated, this mixer will take any bumps and scratches without it getting damaged or looking old. The sleek design does not compromise any part of the finished product. A state of the art design allows for convection cooling, meaning your power unit will not overheat your unit after continuous use. Separating the power supply from the analog circuitry inside the mixer allows for near silent background noise, allowing for a serious and high quality output sound. As well as this, the knob placement has been put above the chassis of the console, thus not damaging circuitry underneath should the device ever be dropped or mishandled.

Rather than the standard MG Series mixers, a select number of mixers also feature the XU functions. This includes a built in USB interface, which allows a stereo output to be sent straight from the mixer and can be plugged in to any computer or laptop ready for recording. The bonus with this Yamaha mixer is the USB In feature, which allows one of the stereo tracks to be used in order to playback any recording through the mixer once recorded. This is a great tool for those who want to plug all their equipment in through one desk. On top of that, recording is possible straight away with the included version of Cubase AI. Lastly, the XU range of MG mixers has an in built SPX range of digital effects ranging from reverbs to phasers and pitch shifting.

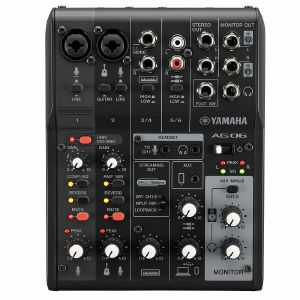

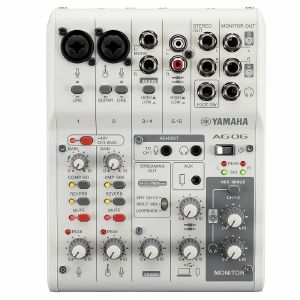

Notes: Combining Yamaha's mixing, DSP (digital effects) and audio interface technologies into one easy-to-use unit, the AG03 is perfectly designed for podcasters, gamers and music producers - and it's Mac, Windows and iOS compatible.

AG is a multi-purpose, high-resolution mixer and USB audio interface designed to elevate the creative, audio experience for webcasters / podcasters, gamers, mobile musicians, music producers and more...

The Yamaha AG Series offers high-resolution (24-bit/192kHz) audio recording and playback, iOS compatibility and battery operation.

A key feature of the AG Series is the intuitive 'TO PC' switch that allows users to select which inputs are routed back to a computer or iOS device. Selecting Dry CH 1-2 allows the computer or iOS to record inputs 1 and 2, while the INPUT MIX switch routes all inputs to the computer or iOS device via USB for standard music production applications. The LOOPBACK function in the TO PC section, which is perfect for podcasters, routes all inputs to the stereo USB output, along with the USB input from the computer. This makes mixing mics and instruments with music beds, sound effects or the audio from computers and iOS devices a breeze.

Gamers are also able to adjust their sound in real-time with the included headset interface and hardware controls, removing the need to open a software control panel. The AG is the perfect tool for creating videos on sites like Twitch.tv.

Unlike USB audio interfaces which typically rely on software to control routing, effects and monitoring, the totally new AG series eliminates the need for software and brings easy-to-use routing and DSP controls to the front panel. All of this is combined with high resolution 24-bit, 192kHz audio.

The AG series also features the acclaimed high-quality Yamaha D-PRE microphone preamps and onboard DSP effects, along with an AUX input for additional music source - such as an iPod. The inclusion of a foot switch input means that performers can add a footswitch to kill the FX on a mic channel when talking between songs. Separate headphone/monitor volume controls are perfect for gamers who share videos. The layout brings hidden or difficult-to-find software controls to the front panel with easy-to-use faders, knobs and switches. 1-TOUCH DSP makes it easier than ever to get professional sound quality.

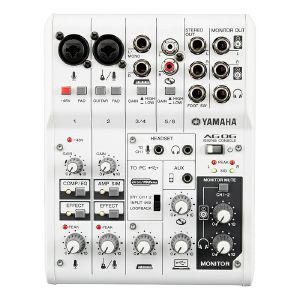

The AG06 features six channels: a main input optimised for vocals with a D-PRE studio-quality mic preamp, a second flexible channel for another mic or a guitar and two stereo inputs for keyboards or other line level sources. The flexible second channel features 1-TOUCH AMP SIM DSP for great guitar tone at the touch of a button. The three-channel AG03 features a single 60mm fader for the main input with D-PRE mic preamp and a Hi-Z input that allows direct connection for guitars and basses.

Notes: For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound.

The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first.

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

Notes: For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multi-effects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive line-up of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or colour to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

The preamps are where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custom made MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany miked instruments during performance, avoiding the clipping that can seriously affect your mix.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favourite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

MG XU models are bundled with Downloadable Steinberg's Cubase AI software. As one of the most advanced, comprehensive DAW suites available, Steinberg's Cubase has led the charge, providing users with a powerful and flexible platform for music production. Cubase AI offers these same core technologies and interface that have won Cubase worldwide acclaim.

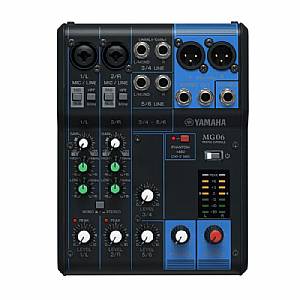

Notes: The Yamaha MG Series of mixers feature a design and construction that will handle the standard wear and tear of the active musician. Featuring the steel chassis that is impact resistant and powder coated, this mixer will take any bumps and scratches without it getting damaged or looking old. The sleek design does not compromise any part of the finished product.

A state of the art design allows for convection cooling, meaning your power unit will not overheat your unit after continuous use. Separating the power supply from the analog circuitry inside the mixer allows for near silent background noise, allowing for a serious and high quality output sound. As well as this, the knob placement has been put above the chassis of the console, thus not damaging circuitry underneath should the device ever be dropped or mishandled.

The MG06 includes a number of features that make it stand out above the rest of compact mixers on the market. It has phantom power on the first two channel's class A preamps for any condenser microphones as well as a mono/stereo select button for instant control and flexibility. These two channels also include a 2 band EQ and a high pass filter, allowing a lot of frequency control on such a small mixer.

As well as this, two stereo channels for jack devices make up channels 3 through to 6. Outputs are aplenty on the MG06, featuring stereo jack and XLR outputs, as well as a phones output for monitoring purposes.

Notes: Great value from this compact analogue mixer with built-in effects. Ten channel design with durable build and excellent sound quality. Also available as MG10XU with built-in USB audio interface.

Supplier's Notes:
MG-X are an addition to the MG Mixer line up. Available in 10, 12 and 16 channel versions, this variant of MG Mixer features our acclaimed SPX effects, without the USB option featured on the XU model - perfect for all scenarios where USB streaming is not needed. The quality and features of the MG mixers series is of course retained, whilst the new models are presented in a fresh black/grey finish.

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

As same as XU models, X models have SPX effects. Not to mention live session, but also installation cases like conference rooms, banquet halls and weddings, users can have wide range of use. Stylish grey colour models enhance your performance.

10-Channel Mixing Console
Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
D-PRE mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis

Dimensions (W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 2.1 kg (4.63 lbs.)

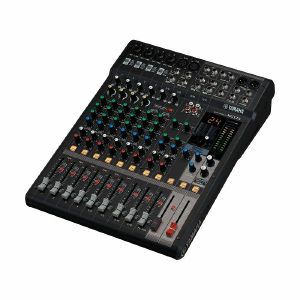

Notes: MG-X are an addition to the MG Mixer line up. Available in 10, 12 and 16 channel versions, this variant of MG Mixer features our acclaimed SPX effects, without the USB option featured on the XU model - perfect for all scenarios where USB streaming is not needed. The quality and features of the MG mixers series is of course retained, whilst the new models are presented in a fresh black/grey finish.

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

As same as XU models, X models have SPX effects. Not to mention live session, but also installation cases like conference rooms, banquet halls and weddings, users can have wide range of use. Stylish grey colour models enhance your performance.

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
"D-PRE" mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis

Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
Net Weight: 4.2 kg (9.3 lbs.)

Notes: Part of the analogue MG-X series, the MG16X CV features 16 channels with D-PRE class A preamps, three-band semi-parametric EQ and high-quality SPX digital effects. Solid value.

Supplier's Notes:
MG-X are an addition to the MG Mixer line up. Available in 10, 12 and 16 channel versions, this variant of MG Mixer features our acclaimed SPX effects, without the USB option featured on the XU model - perfect for all scenarios where USB streaming is not needed. The quality and features of the MG mixers series is of course retained, whilst the new models are presented in a fresh black/grey finish.

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of their products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

As same as XU models, X models have SPX effects. Not to mention live session, but also installation cases like conference rooms, banquet halls and weddings, users can have wide range of use. Stylish grey colour models enhance your performance.

Specifications

Mixing capability

On-board processors - SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O
Phantom power: +48 V
Digital I/O: N/A

Input Channels

Mono[MIC/LINE]: 8
Mono/Stereo[MIC/LINE]: 2
Stereo[LINE]: 2
Output Channels
STEREO OUT: 2
MONITOR OUT: 1
PHONES: 1
AUX SEND: 4
GROUP OUT: 4
Bus - Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)

Input Channel Function

PAD: 26 dB (Mono)
HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID: Gain: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General

Total harmonic distortion: 03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk: -78 dB
Power requirements: AC 100 - 240 V, 50 / 60 Hz
Power consumption: 22 W

Dimensions

W: 308 mm (12.1"), H: 118 mm (4.6"), D: 422 mm (16.6")
Net weight: 2 kg (9.3 lbs.)
Accessories: Included Accessory: Owner's Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others: Operating Temperature: 0 to +40C

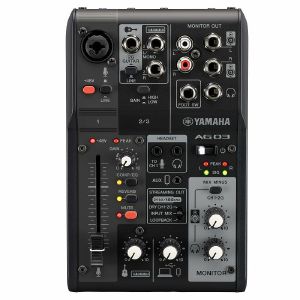

Notes: With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.

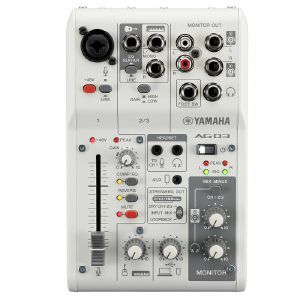

The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.

Flexible connectivity and LOOPBACK function expand your streaming capabilities
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.

You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.

Regardless of your particular streaming application, you'll likely want to add some depth and dimension to the audio you're broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

*BMS-10A and mobile battery are sold separately.

The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Specifications

Inpur Channels
Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
Smartphone: 1 - 4-pole mini input/output (TRRS)
USB: 1

Output Channels
PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pole mini input/output (TRRS)
MONITOR OUT: 2 - L/R Stereo: Phone, RCA
USB: 1

Bus: 1 Stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors - DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input: 1 - Type-C, 5 V DC, 900 mA

Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimensions - W x H x D: 126 mm (5.0") x 63 mm (2.5") x 201 mm (7.9")
Net weight: 0.8 kg (1.8 lbs)
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others: Operating Temperature: 0 to + 40C

Notes: With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.

The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.

Flexible connectivity and LOOPBACK function expand your streaming capabilities
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.

You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.

Regardless of your particular streaming application, you'll likely want to add some depth and dimension to the audio you're broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.

The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.

*BMS-10A and mobile battery are sold separately.

The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Specifications

Inpur Channels
Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
Smartphone: 1 - 4-pole mini input/output (TRRS)
USB: 1

Output Channels
PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pole mini input/output (TRRS)
MONITOR OUT: 2 - L/R Stereo: Phone, RCA
USB: 1

Bus: 1 Stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors - DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input: 1 - Type-C, 5 V DC, 900 mA

Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimensions - W x H x D: 126 mm (5.0") x 63 mm (2.5") x 201 mm (7.9")
Net weight: 0.8 kg (1.8 lbs)
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others: Operating Temperature: 0 to + 40C

Notes: Two heads are better than one, and when it comes to live streaming, the same can be said for microphone inputs. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom powered mic inputs for condenser microphones. Combined with flexible connectivity including an upgraded 4-pole mini I/O, the AG06MK2 opens up a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can't cover.

The AG06MK2 allows you to connect two condenser microphones of your choice, as well as two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it is also possible to add audio from devices connected via USB in LOOPBACK mode as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones along with each of the audio sources for a variety of streaming applications such as podcasts with dialogue, interviews, vocal performances with an acoustic instrument, or even a live band.

With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha's FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks.

Sound quality can often be a deciding factor for whether or not someone will tune in to your live streaming content. With the adoption of USB-C and the requisite improved internal circuitry, the AG06MK2 sees a significant improvement in sound quality compared to previous models giving your streaming a more professional edge.

Regardless of your particular streaming application, you'll likely want to add some depth and dimension to the audio you're broadcasting to add professionalism to your streaming content. The AG06MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG06MK2 via USB.

The sleek, slim, and compact body of the AG06MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

Specifications

Input Channels
Mono[MIC/LINE]: 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Mono[MIC/LINE]Stereo[LINE]: 2 - L/R Stereo: Phone, RCA
Smartphone: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
USB: 1

Output Channels
PHONES: 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pole mini input/output (TRRS)
MONITOR OUT: 1
STEREO OUT: 1
USB: 1

Bus: 1 stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors - DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input: 1 - Type-C, 5 V DC, 900 mA

Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimensions W x H x D: 152 mm (6.0") x 63 mm (2.5") x 201 mm (7.9")
Net weight: 0.9 kg (2.0 lbs)
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Operating Temperature: 0 to + 40 C

Notes: For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in their products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive line-up of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Included in the box:

1 x Yamaha MG10XUF Analogue Mixer
1 x AC Adapter
1 x Cubase AI Download Information
1 x Owner's Manual
1 x Technical Specifications Sheet

Notes: For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in their products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive line-up of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Included in the box:

1 x Yamaha MG12XUK Analogue Mixer
1 x AC Adapter
1 x Cubase AI Download Information
1 x Owner's Manual
1 x Technical Specifications Sheet

Notes: Two heads are better than one, and when it comes to live streaming, the same can be said for microphone inputs. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom powered mic inputs for condenser microphones. Combined with flexible connectivity including an upgraded 4-pole mini I/O, the AG06MK2 opens up a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can't cover.

The AG06MK2 allows you to connect two condenser microphones of your choice, as well as two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it is also possible to add audio from devices connected via USB in LOOPBACK mode as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones along with each of the audio sources for a variety of streaming applications such as podcasts with dialogue, interviews, vocal performances with an acoustic instrument, or even a live band.

With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it, and can even be controlled using Yamaha's FC5 dedicated foot switch (sold separately) which can also add reverb to your signal while keeping your hands free for other tasks.

Sound quality can often be a deciding factor for whether or not someone will tune in to your live streaming content. With the adoption of USB-C and the requisite improved internal circuitry, the AG06MK2 sees a significant improvement in sound quality compared to previous models giving your streaming a more professional edge.

Regardless of your particular streaming application, you'll likely want to add some depth and dimension to the audio you're broadcasting to add professionalism to your streaming content. The AG06MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and a 1-TOUCH amp simulator to add authenticity and punch to your guitar input.

All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.

You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG06MK2 via USB.

The sleek, slim, and compact body of the AG06MK2 can be placed on virtually any flat surface.

By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.

Specifications

Input Channels
Mono[MIC/LINE]: 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Mono[MIC/LINE]Stereo[LINE]: 2 - L/R Stereo: Phone, RCA
Smartphone: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
USB: 1

Output Channels
PHONES: 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously
Smartphone: 1 - 4-pole mini input/output (TRRS)
MONITOR OUT: 1
STEREO OUT: 1
USB: 1

Bus: 1 stereo
Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors - DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input: 1 - Type-C, 5 V DC, 900 mA

Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimensions W x H x D: 152 mm (6.0") x 63 mm (2.5") x 201 mm (7.9")
Net weight: 0.9 kg (2.0 lbs)
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Operating Temperature: 0 to + 40 C

Notes: 12-channel version of the MG mixer series packs a lot of functionality into a small footprint. Class A pre-amps, three-band EQ and neat, ergonomic design. Great value.

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

D-PRE (Discrete Class-A Mic Preamps): This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

High Quality Sound Op-amp: The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch: With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

Notes: The 3rd generation of the Yamaha MG Mixer brings with it some neat updated features, great build quality and the same great sound and flexibility that we have come to expect from a Yamaha mixing console. Built with a sturdy metal chassis, the MG III series mixers are designed to last.

The MG-06X is a 6 channel mixer with 2 D-Pre Mic inputs for super-quiet operation. The MG-06X has +48v phantom power for condenser mics and XLR balanced outputs to ensure that no matter how big or small your operation is, the MG06X will act as the lynch-pin mixing desk that you can depend upon.

Also on the MG06X are a bank of Yamaha SPX effects to further enhance your sound with no need to add in additional processors.

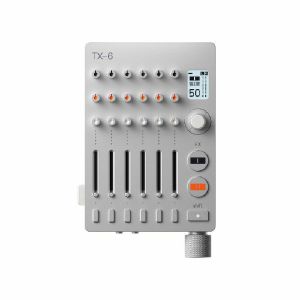

Notes: *** B-STOCK: Box opened, but product is in excellent condition and in perfect working order ***


A tiny powerhouse of a mixer and audio interface. High-end electronics crammed into a compact, battery-powered format, featuring six stereo inputs, MIDI and Bluetooth support.

Supplier's Notes:
Ultra-portable pro-mixer and audio interface

TX-6 is an ultra-portable, battery-powered mixer and multi-channel audio interface. Comparable to larger units, but with even more tech packed into one sturdy little machine.

Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your ios devices.

The smallest of its kind.

Tx-6 features a 6 channel stereo mixer with a configurable knob layout. Choose to have the three-band EQ at your fingertips, or customize each knob to control whichever setting you prefer. With more than meets the eye, TX-6 is packed full of features and connectivity options.

Battery powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.

Synthesizer & sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

8 built-in effects

Explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a three-band EQ and adjustable compressor.

Quality and engineering

TX-6 is a sturdy little machine. Encased in CNC aluminium with 2k moulding, custom-made encoders and faders, and custom PCB - engineered for portability.

Wireless connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super slimline cables

High quality, slimline cables custom-made for tx-6. The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

Customizable interface

When you're ready for the studio, use tx-6 as a 12 channel audio interface and connect to any daw over USB-C. MFi also allows you to connect to ios devices.

DJ mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.

6.35 + 3.5 mm output

Connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.

Field bags

Designed to fit TX-6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.

Multitrack elegance.

The first portable pro-mixer that can be used as a multi-functional 32-bit 48khz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine.

Connect to your daw for 12 channel multitrack recordings. Use the internal synth and sequencer, or control them via external midi device. With MFi you can even connect to your ios device.inputs and outputs.

Specifications

Inputs and outputs.

32-bit/48kHz USB interface
3.5 mm mini jack to 6.3 mm jack
Headset mic input
Aux output
Connect to iPhoner, lightning cable
Stereo or mono for each input

Dimensions and weight

90 mm (102 mm with adapter) x 62 mm x 23 mm
160 g / 5.6 oz

Electrical characteristics
Audio inputs:
Impedance: 10 kOhm
Analog gain: 0 - 42 dB
Max level 8 dBu, 2 Vrms
TLV320ADC3140 burr-brown
SNR ~ 102 dBA
Audio output (main and aux):max level 8 dBu, 2 Vrms
Cirrus Logic Master Hifi CS43131
SNR > 120 dBA
Audio output (cue):max level 2 dBu, 1 Vrms
Cirrus logic CS47L35SNR > 110 dBA
Handling
Ambient working temperature: 0-50-C (32-122-F)
Ambient storage temperature: 0-30-C (32-86-F)

Clean the shell of the unit with a microfibre cloth. Use pressurized air to remove dust from the faders.

To keep the battery healthy, the unit should be charged at least every 6 months. If not used for a long time, it may not charge again.

Notes: ***B-STOCK: Box opened, product in perfect working order***


A tiny powerhouse of a mixer and audio interface. High-end electronics crammed into a compact, battery-powered format, featuring six stereo inputs, MIDI and Bluetooth support.

Supplier's Notes:
Ultra-portable pro-mixer and audio interface

TX-6 is an ultra-portable, battery-powered mixer and multi-channel audio interface. Comparable to larger units, but with even more tech packed into one sturdy little machine.

Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your ios devices.

The smallest of its kind.

Tx-6 features a 6 channel stereo mixer with a configurable knob layout. Choose to have the three-band EQ at your fingertips, or customize each knob to control whichever setting you prefer. With more than meets the eye, TX-6 is packed full of features and connectivity options.

Battery powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.

Synthesizer & sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

8 built-in effects

Explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a three-band EQ and adjustable compressor.

Quality and engineering

TX-6 is a sturdy little machine. Encased in CNC aluminium with 2k moulding, custom-made encoders and faders, and custom PCB - engineered for portability.

Wireless connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super slimline cables

High quality, slimline cables custom-made for tx-6. The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

Customizable interface

When you're ready for the studio, use tx-6 as a 12 channel audio interface and connect to any daw over USB-C. MFi also allows you to connect to ios devices.

DJ mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.

6.35 + 3.5 mm output

Connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.

Field bags

Designed to fit TX-6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.

Multitrack elegance.

The first portable pro-mixer that can be used as a multi-functional 32-bit 48khz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine.

Connect to your daw for 12 channel multitrack recordings. Use the internal synth and sequencer, or control them via external midi device. With MFi you can even connect to your ios device.inputs and outputs.

Specifications

Inputs and outputs.

32-bit/48kHz USB interface
3.5 mm mini jack to 6.3 mm jack
Headset mic input
Aux output
Connect to iPhoner, lightning cable
Stereo or mono for each input

Dimensions and weight

90 mm (102 mm with adapter) x 62 mm x 23 mm
160 g / 5.6 oz

Electrical characteristics
Audio inputs:
Impedance: 10 kOhm
Analog gain: 0 - 42 dB
Max level 8 dBu, 2 Vrms
TLV320ADC3140 burr-brown
SNR ~ 102 dBA
Audio output (main and aux):max level 8 dBu, 2 Vrms
Cirrus Logic Master Hifi CS43131
SNR > 120 dBA
Audio output (cue):max level 2 dBu, 1 Vrms
Cirrus logic CS47L35SNR > 110 dBA
Handling
Ambient working temperature: 0-50-C (32-122-F)
Ambient storage temperature: 0-30-C (32-86-F)

Clean the shell of the unit with a microfibre cloth. Use pressurized air to remove dust from the faders.

To keep the battery healthy, the unit should be charged at least every 6 months. If not used for a long time, it may not charge again.

Notes: ***B-STOCK: Box opened, product in perfect working order***


A tiny powerhouse of a mixer and audio interface. High-end electronics crammed into a compact, battery-powered format, featuring six stereo inputs, MIDI and Bluetooth support.

Supplier's Notes:
Ultra-portable pro-mixer and audio interface

TX-6 is an ultra-portable, battery-powered mixer and multi-channel audio interface. Comparable to larger units, but with even more tech packed into one sturdy little machine.

Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your ios devices.

The smallest of its kind.

Tx-6 features a 6 channel stereo mixer with a configurable knob layout. Choose to have the three-band EQ at your fingertips, or customize each knob to control whichever setting you prefer. With more than meets the eye, TX-6 is packed full of features and connectivity options.

Battery powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.

Synthesizer & sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

8 built-in effects

Explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a three-band EQ and adjustable compressor.

Quality and engineering

TX-6 is a sturdy little machine. Encased in CNC aluminium with 2k moulding, custom-made encoders and faders, and custom PCB - engineered for portability.

Wireless connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super slimline cables

High quality, slimline cables custom-made for tx-6. The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

Customizable interface

When you're ready for the studio, use tx-6 as a 12 channel audio interface and connect to any daw over USB-C. MFi also allows you to connect to ios devices.

DJ mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.

6.35 + 3.5 mm output

Connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.

Field bags

Designed to fit TX-6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.

Multitrack elegance.

The first portable pro-mixer that can be used as a multi-functional 32-bit 48khz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine.

Connect to your daw for 12 channel multitrack recordings. Use the internal synth and sequencer, or control them via external midi device. With MFi you can even connect to your ios device.inputs and outputs.

Specifications

Inputs and outputs.

32-bit/48kHz USB interface
3.5 mm mini jack to 6.3 mm jack
Headset mic input
Aux output
Connect to iPhoner, lightning cable
Stereo or mono for each input

Dimensions and weight

90 mm (102 mm with adapter) x 62 mm x 23 mm
160 g / 5.6 oz

Electrical characteristics
Audio inputs:
Impedance: 10 kOhm
Analog gain: 0 - 42 dB
Max level 8 dBu, 2 Vrms
TLV320ADC3140 burr-brown
SNR ~ 102 dBA
Audio output (main and aux):max level 8 dBu, 2 Vrms
Cirrus Logic Master Hifi CS43131
SNR > 120 dBA
Audio output (cue):max level 2 dBu, 1 Vrms
Cirrus logic CS47L35SNR > 110 dBA
Handling
Ambient working temperature: 0-50-C (32-122-F)
Ambient storage temperature: 0-30-C (32-86-F)

Clean the shell of the unit with a microfibre cloth. Use pressurized air to remove dust from the faders.

To keep the battery healthy, the unit should be charged at least every 6 months. If not used for a long time, it may not charge again.

Notes: A tiny powerhouse of a mixer and audio interface. High-end electronics crammed into a compact, battery-powered format, featuring six stereo inputs, MIDI and Bluetooth support.

Supplier's Notes:
Ultra-portable pro-mixer and audio interface

TX-6 is an ultra-portable, battery-powered mixer and multi-channel audio interface. Comparable to larger units, but with even more tech packed into one sturdy little machine.

Mix 6 stereo input channels, use tempo sync, discover the internal synthesizer and sequencer or use the built-in tuner. MFi compatibility even lets you connect to your ios devices.

The smallest of its kind.

Tx-6 features a 6 channel stereo mixer with a configurable knob layout. Choose to have the three-band EQ at your fingertips, or customize each knob to control whichever setting you prefer. With more than meets the eye, TX-6 is packed full of features and connectivity options.

Battery powered

The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and led strength is completely adjustable.

Synthesizer & sequencer

TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.

8 built-in effects

Explore send effects like reverb, chorus and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a three-band EQ and adjustable compressor.

Quality and engineering

TX-6 is a sturdy little machine. Encased in CNC aluminium with 2k moulding, custom-made encoders and faders, and custom PCB - engineered for portability.

Wireless connectivity

With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.

Super slimline cables

High quality, slimline cables custom-made for tx-6. The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.

Customizable interface

When you're ready for the studio, use tx-6 as a 12 channel audio interface and connect to any daw over USB-C. MFi also allows you to connect to ios devices.

DJ mode

Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between the channel 5 and 6 so you can fade or cut between the two.

6.35 + 3.5 mm output

Connect your audio output through 3.5 mm mini jack or use the included and removable 6.35 mm jack to 3.5 mm mini jack adapter.

Field bags

Designed to fit TX-6 field mixer and constructed in heavy duty fabric and hardware, field bags are designed for durability, ready to be used out in the field.

Multitrack elegance.

The first portable pro-mixer that can be used as a multi-functional 32-bit 48khz audio interface that has an instrument tuner, built-in digital FX, synthesizer and drum machine.

Connect to your daw for 12 channel multitrack recordings. Use the internal synth and sequencer, or control them via external midi device. With MFi you can even connect to your ios device.inputs and outputs.

Specifications

Inputs and outputs.

32-bit/48kHz USB interface
3.5 mm mini jack to 6.3 mm jack
Headset mic input
Aux output
Connect to iPhoner, lightning cable
Stereo or mono for each input

Dimensions and weight

90 mm (102 mm with adapter) x 62 mm x 23 mm
160 g / 5.6 oz

Electrical characteristics
Audio inputs:
Impedance: 10 kOhm
Analog gain: 0 - 42 dB
Max level 8 dBu, 2 Vrms
TLV320ADC3140 burr-brown
SNR ~ 102 dBA
Audio output (main and aux):max level 8 dBu, 2 Vrms
Cirrus Logic Master Hifi CS43131
SNR > 120 dBA
Audio output (cue):max level 2 dBu, 1 Vrms
Cirrus logic CS47L35SNR > 110 dBA
Handling
Ambient working temperature: 0-50-C (32-122-F)
Ambient storage temperature: 0-30-C (32-86-F)

Clean the shell of the unit with a microfibre cloth. Use pressurized air to remove dust from the faders.

To keep the battery healthy, the unit should be charged at least every 6 months. If not used for a long time, it may not charge again.

Notes: Revolutionary Online Broadcaster Platform with 4-Channel Mixer, Motorized Faders, Sound Board and Vocal Effects

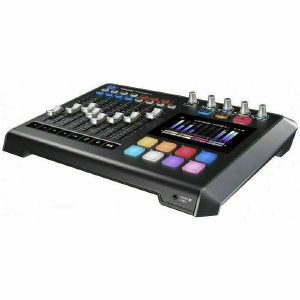

Notes: Designed specifically for podcasters, the Mixcast 4 is a recorder, mixer and audio interface all in one. Solid metal construction with eight channel faders and a large colour touchscreen.

Supplier's Notes:
Audio creation made easy

Mixcast 4 makes professional content creation easy. For podcast creation, live streaming, event production or voice over, Mixcast 4 can mix and record mic input with internal background music, effect sounds and jingles via the trigger pads, and external audio input from your phone, PC or Bluetooth device.

Together with the Tascam Podcast Editor software you get a complete package including waveform editing and multi-track recording for all work steps from pre-production to completion.

Stress-free touch panel control

Equipped with four mic inputs and four individual headphones outputs, the Mixcast 4 is always ready for podcast production without complicated settings. It provides all audio-related operation and workflow needed for live-streaming, events, podcasts, and other applications. The auto-mixing function, for example, can automatically adjust optimal levels and set mic priority for a perfect mix.

And thanks to the 5-inch colour touch screen, you can intuitively access the well-structured menu and make the desired settings with just a few simple steps.

A complete workstation with all the functions you need

From audio recording to the mixing of recorded audio, the Mixcast 4 offers a complete production environment with multiple convenient functions such as 14-track recording direct to the unit's SD card, Bluetooth audio input, an Aux input connector to easily mix and record phone conversations (with mix-minus) or other sound sources, and USB connectivity that allows the unit to add sounds from a computer.

You can even use Mixcast 4 as a 14-in/2-out USB audio interface with your favourite DAW software.

Enhance content with real-time sound effects

The Mixcast 4 comes with eight banks of fully customisable, illuminated sound pads which can be triggered during a podcast production or live broadcast. In addition to preset sound effects, users can flexibly assign new sounds, music or even mic sounds that have been pre-recorded on the unit.

The Mixcast 4 sound pads also allow for easy and on-time voice effects such as pitch transformation, reverb and more to make live streams and recordings even more interesting and fun.

Tascam Podcast Editor available for post-editing and control

The Tascam Podcast Editor offers simple and practical editing of audio content, track arming, as well as easy configuration and assignment of sound effects and background music to the sound pads.

There's no need for expert knowledge on DAW software as Podcast Editor also offers intuitive graphics that will help users record audio easily using the Mixcast 4. Tascam Podcast Editor is designed specifically for Mixcast 4 and is available for both computers and mobile devices.

Recorder Specification

Recording Media: SD/SDHC/SDXC cards (64MB to 512 GB)
Recording/playback formats: Wave Files (BWF) 48 kHz, 24 Bit Stereo or 14 ch Poly
Max. Recordable tracks: 14 tracks (12 track + Stereo Mix)

Analogue Audio inputs/ outputs

Mic Input jacks (1-4): XLR/TRS combo jacks
Phones (TRRS) 1 jack (CTIA standard): 3.5 mm (1/8") 4-pole mini jack
LINE IN (TRRS) jack (CTIA standard): 3.5 mm (1/8") 4-pole mini jack
LINE IN L/R (balanced) jacks: 6.3mm (1/4") standard TRS jacks
PHONES jacks (1-4):6.3mm (1/4") standard stereo jacks; 45mW+45mW
PHONES (TRRS) 1 jack (CTIA standard) : 3.5 mm (1/8") 4-pole mini jack, splits from PHONES 1 output
LINE OUT (TRRS) jack (CTIA standard): 3.5 mm (1/8") 4-pole mini jack
MONITOR OUT L/R (balanced) jacks: 6.3mm (1/4") standard TRS jacks
LINE OUT jack: 3.5mm (1/8") stereo mini jack

Control input/output

USB Port: TYP C / USB 2.0 High Speed, USB Audio Class 2.0 and USB Mass Storage Class
Bluetooth: Output Class2 / A2DP Profile

Power

Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption: 12.5 W (maximum)
Weight: 2.55 kg
Permissible operating temperature range: 0-40 -C
Dimensions (W × H × D): 375 mm × 57 mm × 264 mm (excluding protrusions)
375 mm × 71 mm × 267 mm (overall)

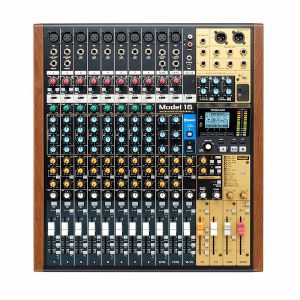

Notes: A spiritual successor to the classic Tascam Portastudios? Slimmed-down version of the flagship Model 24 analogue mixer with built-in digital multitrack recorder. Versatile.

Supplier's notes:
TASCAM's Model 16 all-in-one mixer brings the flagship Model 24's powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a full-featured small format mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.

14 Inputs for Complete Flexibility:
14 easy-to-access top-panel inputs provide flexible options for microphones or instrument connections, including 10 Mic/14 Line/2 Inst to allow easy access for connecting microphones, instruments or other audio sources for live recording or mixing.

A Bluetooth 5.0 enabled Stereo Input Source Channel also provides stereo RCA and 1/8" Stereo (selectable) jacks for streaming audio device level control.

Professional Channel Strip Control Features:
A tactile Gain knob tops each channel for precise tweaking of input levels. A push-button Lo-Cut filter and three-position Input Selector (Live/PC/MTR) facilitate quick and precise control of input source signals. A 1-knob inline Compressor is available on inputs 1-8 as is a mid-range sweepable 3-band EQ.

Maximum Audio Routing Possibilities and Monitoring:
3 Aux bus (MON1, MON2[pre/post], FX) and PFL Listen round out the Model 16's pro-level signal path routing options. A Sub bus provides an additional stereo lineout source to the master SEND section.

3 AUX Outs let you route the audio signal for stage monitoring, or to external gear such as outboard effects, signal processors or headphone mixes. And the Footswitch control jack provides additional monitoring and control features.

Powerful Internal 16-Track Multi-track Digital Recorder:
The Model 16's MTR section features a powerful internal 16-Track Multi-track recorder, capturing 14 Inputs and 2 Main Mix simultaneous tracks of audio to an internal SD card in pristine 24-bit/48 kHz quality. Record anything from live performance to rehearsals, worship events, spoken word and meetings, as well as perform overdubs and punch-in/out quickly and easily.

Recorded tracks can be immediately mixed, mastered or exported to a computer for further editing, formatting and publishing.

High-Quality Internal Audio Interface:
An internal 16 input/14 output USB audio interface captures audio at a 24-bit/48 kHz sampling rate for recording or playing back from an external DAW (digital audio workstation). The new generation TASCAM USB driver delivers the minimum size of the audio buffer which can be set to as low as 4 samples, resulting in extremely low latency and the highest level of efficiency when recording audio.

Versatile Input Capability:
Using the channel Mode switch, each channel can select the input source as needed. This allows a super flexible input configuration to be selected where some inputs can be live, other inputs can play tracks from the internal MTR, while other inputs can play tracks from a computer via USB, all simultaneously.

16 Editable Multi-Effects:
The Model 16's versatile Effects Section offers 16 editable and foot-controllable multi-effects, including reverb, delay, chorus and flange.

4-Band Master EQ:
A 4-Band EQ with mid-range sweepable, wide/narrow Q can be dialled in for crafting the perfect mix, assignable to MAIN outs or MON1/2 outs as you like.

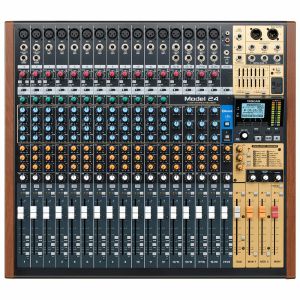

Notes: Insanely powerful spiritual successor to the old cassette-based Portastudios. Analogue mixer with built-in digital recorder and audio interface. Super versatile and killer value.

Supplier's notes:
TASCAM has continuously been providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: The Model 24 Multitrack Recorder/Mixer/Interface.

Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today's working and recording musician.

Simple, Intuitive Design:

One glance is all you need. The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

The Model 24 is truly a modern take on a classic design.

TASCAM's Revolutionary Recording Technology:

Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

Flexible Connectivity:

In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8", dual RCA Bluetooth connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

Durability and Reliability:

Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM's legendary reliability will keep the music going.

Notes: 12-channel version of Tascam's modern take on the classic Portastudio concept. Digital recorder fused with analogue mixer and audio interface. Great one-box recording solution.

Supplier's notes:
Integrated production suite for music and multimedia creators, songwriters and performers.

Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.

Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.

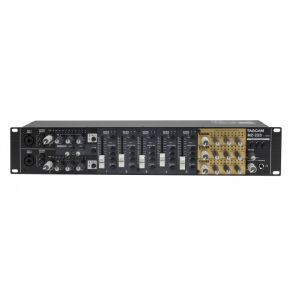

Notes: The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

Flexible I/O:

The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to three (3) independent zones or destinations using familiar volume sliders and assignment buttons. Input signals can be inserted via five (5) audio channels, each consisting of two (2) sets of unbalanced RCA-type stereo pairs. A total of ten (10) sets of RCA-type inputs are provided. Channels one and two can be set to accommodate phono-level signals for use with a turntable. In addition, located conveniently on the front panel, two mic-compatible XLR inputs are available.

Multiple Zone Outputs:

The independent three-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers. This flexibility, for example, allows music to be routed to zone one, ambient noise or natural sounds to zone two, a separate music track or a voice announcement can be routed to zone three, while the convenient "talkover" function will automatically lower any mixed channel source so the microphone can be heard while speaking.

Easy, Immediate Control:

Familiar volume sliders, routing switches/buttons, EQ knobs, and mute buttons for the microphones make the MZ-223 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event capturing easy. The TASCAM MZ-223 delivers simple operation and maximum audio routing flexibility, all in a compact, affordable package.

Notes: ***B-STOCK: Box opened, product in perfect working order***


12-channel version of Tascam's modern take on the classic Portastudio concept. Digital recorder fused with analogue mixer and audio interface. Great one-box recording solution.

Supplier's notes:
Integrated production suite for music and multimedia creators, songwriters and performers.

Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.

Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.

Notes: A serious mixer from a legendary name. Tascam's 2400 combines analogue mixing with a 24-track recorder, built-in USB interface and DAW integration. Exceptional versatility in a convenient package.

Supplier's Notes:
Streamline Your Mix Process with Advanced Onboard Processing

The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.

22 Channels and 24 Tracks, One Solution

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and Effects

Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

Ample Aux and Sub Outputs

With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you're a DAW-less producer.

Sound with Excitement

TASCAM Ultra HDDA (High-Definition Discrete Architecture) mic preamps give Model 2400 the vibrant analogue sound that makes harmonics come alive.

With Ultra HDDA, any sound source will be represented with the utmost clarity and richness, and with an ultra-low noise floor.

Monitor Your Signal Virtually

With the Model Mixer Settings Panel app, users can take advantage of a digital meter bridge across by connecting the Model 2400 via USB to a PC or Mac. Set peak hold times, monitor the input, MTR or USB signal all while being able scale the GUI from a small window to full screen. Take it a step further by porting the app from your computer to a dedicated monitor of your choosing.

Ready to Be Your Studio Centrepiece

Model 2400 delivers the classic analogue console experience in the studio, with an onboard 24x22 audio interface that's ready to meld with modern production workflows. Insert points on channels 1-12 allow you to integrate studio processors and effects. And with the ability to return 22 DAW tracks through Model 2400's mix path and processing, it's also the most versatile analogue summing mixer you'll find.

MIDI Interface

Model 2400's comprehensive MIDI functionality allows full integration with MIDI-based production setups. From controlling drum machines and synthesizers from your DAW software, to synchronizing external effects processors to the tempo of your music and creating click tracks, Model 2400 offers the MIDI functionality you need to make it happen.

Specifications
Recorder
Recording media: SD (Class 10 or higher), SDHC (Class 10 or higher), SDXC (up to 512 GBytes, Class 10 or higher)
File system: SD: FAT16, SDHC: FAT32, SDXC: exFAT
Recording file formats: WAV (BWF), 44.1/48 kHz, 16/24 bit (maximum file size: 2 GBytes)
Playback file formats: WAV, BWF (44.1/48 kHz, 16/24 bit)
Recordable tracks: 24 (22 tracks + stereo mix)

Audio inputs and outputs

Microphone inputs (MIC, 1-12, 13,15,17,19): XLR-3-31 (combo jack), balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: +10 dBu
Nominal input level: -8 dBu
Minimum input level: -58 dBu
Gain adjustable range: 0-50 dB
Input impedance: 1.9 kO (1-12), 2.4 kO (13, 15, 17, 19)
Line/Instrument inputs (LINE/INST, 1-2): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: LINE: +22 dBu, INST: 19.8 dBV
Nominal input level: LINE: +4 dBu, INST: 1.8 dBV
Gain adjustment range: -10 dB to +40 dB
Input impedance: LINE: 22 kO, INST: 1 MO
Line inputs (LINE, 3-12): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustable range: -10 dB to +40 dB
Input impedance: =22 kO
Stereo line inputs (LINE L/MONO, R, 13/14 to 21/22): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustment range: -20 dB to +30 dB
Input impedance: =11 kO (mono), =22 kO (stereo)
Inserts (1-12): 6.3-mm TRS phone jack, (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance: 15 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Talkback input: XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: -22 dBu
Minimum input level: -65 dBu
Gain adjustable range: 52 dB
Input impedance= 2.6 kO
Main output (MAIN OUTPUT L/R): XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)
Maximum output level: +22 dBu
Nominal output level: +4 dBu
Output impedance: 200 O
Main inserts (MAIN SEND/RETURN L/R): 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance= 9 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Control Room outputs (CONTROL ROOM L/R): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Aux outputs (AUX OUTPUT 1-5): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Sub group outputs (SUB OUTPUT 1-2, 3-4, 5-6, 7-8): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Phones output 1/2: 2 × 6.3-mm stereo phone jack
Maximum output power: 45 mW + 45 mW (at 32 O)

Control inputs/outputs

USB port: USB Type-B
Protocol: USB 2.0 High Speed (480 Mbit/s)
Click output
6.3-mm standard TS jack: (Tip: HOT, Sleeve: GND)
Footswitch connector: 6.3-mm TRS phone jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required)
MIDI input and output: 5-pin DIN connector
Format: Standard MIDI

USB audio

Sampling rate: 44.1 kHz, 48 kHz
Bit depth: 16 bit, 24 bit
Maximum number of audio channels: 24 inputs, 22 outputs

Bluetooth
Version: 5.1
Output class: 2 (approximate transmission distance: 10 m)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
A2DP content protection: SCMS-T

Audio performance
S/N ratio: (22 kHz LPF, A-weighted), Main mix off: -100 dB, Main mix 0 dB: -80 dB
Equivalent input noise (EIN): -128 dBu (Rs=15 O, MIC IN to INSERT SEND, GAIN knobs at max., A-weighted)
Total harmonic distortion (THD+N): (GAIN knobs at min., 1 kHz), 0,01 % (mic input to main output), 0.004 % (mic input to main output, +2 dBu, BYPASS switches on)
Frequency response: (all gain knobs at min., 1 kHz) 20 Hz to 30 kHz, +0.5/-1 dB (analogue), 20 Hz to 20 kHz, +0.5/-1 dB (digital)
Crosstalk: (PAN knobs fully left or right, 1 kHz), Between channels: -80 dB, Between input and output: -80 dB
Maximum gain: (all GAIN knobs at max., PAN knobs fully left or right, BYPASS on, MASTER BUS IN off), 74 dB (MIC to MAIN OUT), 54 dB (MIC to INSERT OUT), 74 dB (MIC to SUB OUT), 75 dB (MIC to AUX OUT), 24 dB (USB/SD to MAIN OUT)

Computer system requirements

Windows: Windows 11, Windows 10 (64-bit)
Compatible computers: Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
Mac: macOS Sonoma (14), macOS Ventura (13)
Compatible computers: Apple Mac computer with a USB 2.0 (or higher) port
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
iOS/iPadOS devices: iOS 17/iPadOS 17, iOS 16/iPadOS 16

Power supply and other specifications

Power: AC 100-240 V, 50/60 Hz
Power consumption: 65 W
Dimensions (W × D × H): 681 mm × 568 mm × 133 mm (overall), 639 mm × 568 mm × 133 mm (without side panels)
Weight: 14 kg
Guaranteed operating temperature range: 0-40 -C
Guaranteed operating humidity range: 5-85 % (without condensation)
Included items: AC power cord, Startup Guide, Registration Guide

Notes: Designed to play nicely with Korg Volcas among others, the VMIX is a great value mini-mixer. Six mono and two stereo inputs, effects sends, click-free mutes and power distribution.

Supplier's Notes:
The VMIX10 is a mixer made especially with the Korg Volca series in mind; if offers the following features:

6 mono input channels with minijack sockets each
2 stereo input channels with stereo minijack sockets for each
click-free mute buttons per channels
per channel: level, pan and two FX-send knobs
2 FX send-return sections (send mono, return stereo)
master level control
stereo headphone output with separate level control
four 9V power supply outputs for Volca boxes or other devices

The case size is identical with the Volca series, so the VMIX10 should fit exactly in the Volca stands that are available from different suppliers.

It includes a power supply adapter with snap-on plugs for EU, UK and US (AU on request).

Notes: ***B-STOCK: Box opened, product in perfect working order***


Designed to play nicely with Korg Volcas among others, the VMIX is a great value mini-mixer. Six mono and two stereo inputs, effects sends, click-free mutes and power distribution.

Supplier's Notes:
The VMIX10 is a mixer made especially with the Korg Volca series in mind; if offers the following features:

6 mono input channels with minijack sockets each
2 stereo input channels with stereo minijack sockets for each
click-free mute buttons per channels
per channel: level, pan and two FX-send knobs
2 FX send-return sections (send mono, return stereo)
master level control
stereo headphone output with separate level control
four 9V power supply outputs for Volca boxes or other devices

The case size is identical with the Volca series, so the VMIX10 should fit exactly in the Volca stands that are available from different suppliers.

It includes a power supply adapter with snap-on plugs for EU, UK and US (AU on request).

Notes: The VMIX-10 R2 is the successor of the popular VMIX-10; a mixer made especially with the Korg Volca series in mind; it offers the following features:

6 mono input channels with minijack sockets each
2 stereo input channels with stereo minijack sockets for each
click-free mute buttons per channels
per channel: level, pan and two FX-send knobs
2 FX send-return sections (send mono, return stereo)
master level control
stereo headphone output with separate level control
four DC isolated 9V power supply outputs, for Volca synths or other devices. The DC isolation suppresses noise especially when powering Volcas from the VMIX-10 (an annoying effect caused by a design detail of the Volcas when powered commonly with the VMIX-10).

The case size is identical with the Volca series, so the VMIX-10 should fit exactly in the Volca stands that are available from different suppliers.

It includes a power supply adapter with snap-on plugs for EU, UK and US (AU on request).

For powering your Volca synths from the VMIX-10, Tangible Waves offer this cable:

DC Cable for Volca

For connecting gear with 1/4" jack sockets, adapters are sold separately;

Adapter mono minijack plug to 1/4" socket

Adapter stereo minijack plug to 2x 1/4" socket

Notes: The Sound LAB G105DA is a 4-channel stereo mixer with 2 volume controls on each channel and 2 master volume controls on the output. It is supplied with 2m x 1.4m patch leads.

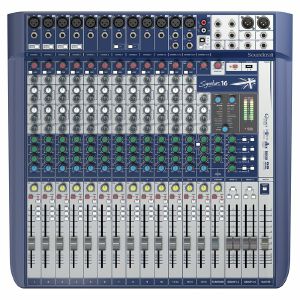

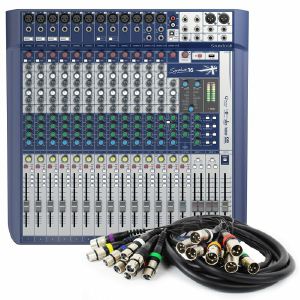

Notes: The Signature 16 is a high-performance 16-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

All Soundcraft Signature Series consoles incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

Recommmended for:
Houses of Worship, Music Venues, Musicians & Bands, Theatres, Tour Sound

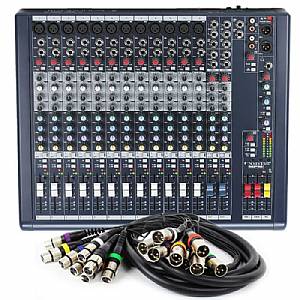

Notes: Soundcraft's MFXi 12 mixer is compact and ideally equipped for live sound applications including fixed installations, houses of worship and portable PA.

The MFXi 12 mixer is empowered by built in 24bit Lexicon processing, delivering 32 stunning reverb, delay and chorus effects. This mixer includes 2 stereo input channels along with a 2 track record output and a 2 track replay input which allows interval music to be easily played from CD, MP3 or other music source.

For increased versatility, the MFXi 12 has two subgroups as well as a main stereo mix, making control of groups of channels much easier to manage. These are supplemented by 2 auxiliary busses which can be used for effects sends or to provide a foldback monitor mix for artists.

The MFXi 12 console uses vertically mounted PCBs which are secured with nutted pots for extra strength, stability and easy servicing. Well spaced controls provide easy access at those critical control moments, enhanced by clear legending which highlights linked or associated functions.

Sound quality is assured by Soundcraft's now legendary GB30 mic preamp and the use of professional condenser microphones is facilitated by the provision of globally switched +48V phantom power. New circuit designs have improved audio quality, and lowered the overall noise floor of the console and FX sections. An integral universal power supply negates the need for an external power module.

The appeal of the MFXi 12 mixer is enhanced with the addition of a custom designed effect for Karaoke use; this preset was engineered by Lexicon and tuned with expert input from the Karaoke markets in Asia to deliver a great out of the box solution for professional and casual Karaoke usage.

Rack ears are included with the Soundcraft MFXi 12.

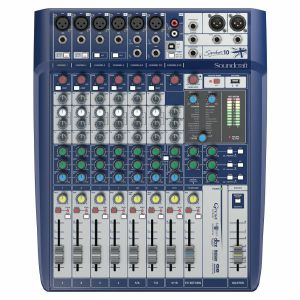

Notes: The Signature 10 is a high-performance 10-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

All Soundcraft Signature Series consoles incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

Recommmended for:
Houses of Worship, Music Venues, Musicians & Bands, Theatres, Tour Sound

Notes: The Signature 16 is a high-performance 16-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

All Soundcraft Signature Series consoles incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

Recommmended for:
Houses of Worship, Music Venues, Musicians & Bands, Theatres, Tour Sound

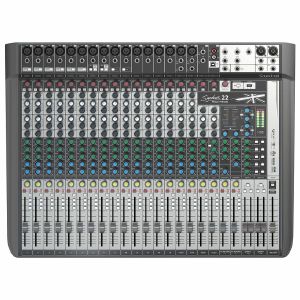

Notes: The Signature 22 is a high-performance 22-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

All Soundcraft Signature Series consoles incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

In addition, the consoles feature smooth, premium-quality faders with GB Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

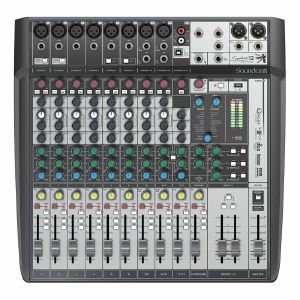

Notes: The Soundcraft Signature 12MTK incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. In addition, the console's multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPXL native plug-in and Ableton Live 9 Lite.

The console is designed to deliver pristine recordings. Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

The Soundcraft Signature 12MTK features smooth, premium-quality faders with GBr Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.

Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.

Features:

High-Performance 12-input small format analogue mixer with onboard effects and multi-track USB recording and playback
14-in/12-out ultra-low latency USB playback and recording interface*
Iconic Soundcraftr Ghost mic preamps with ultra-low noise performance
Renowned Soundcraftr Sapphyre British EQ with sweepable mid-bands per channel
Lexiconr Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
dbxr Limiters (High-ratio Compressors) on input channels
Switchable Hi-Z inputs for guitars, basses and other instruments
Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
Comprehensive Soundcraftr GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
Smooth premium-quality faders
Robust metal construction for tour-grade build quality and reliability
Internal universal power supply
* USB Interface Compatibility:
PC: Supports Windows 7, Windows 8 and Windows 10.
Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan

Notes: Mix, record and produce your Signature sound:
Drawing on over 40 years experience in live sound mixing, the Signature Multi-Track mixers bring together an ultra-low latency USB recording interface, a superb analogue mixer and the unrivalled British sound of Soundcraft. Whether you're recording a live gig or a studio rehearsal, mixing a band, or producing a demo, Signature Multi-Track mixers deliver great sounding results thanks to high-grade Ghost preamps, the most musical EQ in the business, pristine Lexicon effects and powerful dbx dynamics - all designed to let you discover your Signature sound.

The Soundcraft Signature 22MTK incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

It includes a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. In addition, the console's multi-track USB audio interface allows any VST/AU/AAX/TDM/RTAS plug-ins to be inserted on any input channel, enabling studio plug-ins to be seamlessly integrated with live performances. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

The console is designed to deliver pristine recordings. Both have an ultra-low-latency USB interface that flawlessly captures every channel, which can then be mixed or transferred to a DAW for further mixdown and production. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

The Soundcraft Signature 22MTK features smooth, premium-quality faders with GBr Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs.

Both the Soundcraft Signature 12MTK and Soundcraft Signature 22MTK are built using tour-grade robust metal construction and top-quality components. Both have an internal universal power supply.

Notes: Soundcraft's MFXi 8 mixer is compact and ideally equipped for live sound applications including fixed installations, houses of worship and portable PA.

The MFXi 8 is empowered by built in 24bit Lexicon processing, delivering 32 stunning reverb, delay and chorus effects (see opening page). This mixer includes 2 stereo input channels along with a 2 track record output and a 2 track replay input which allows interval music to be easily played from CD, MP3 or other music source.

For increased versatility, The Soundcraft MXFi 8 has two subgroups as well as a main stereo mix, making control of groups of channels much easier to manage. These are supplemented by 2 auxiliary busses which can be used for effects sends or to provide a foldback monitor mix for artists.

The MFXi 8 console uses vertically mounted PCBs which are secured with nutted pots for extra strength, stability and easy servicing. Well spaced controls provide easy access at those critical control moments, enhanced by clear legending which highlights linked or associated functions.

Sound quality is assured by Soundcraft's now legendary GB30 mic preamp and the use of professional condenser microphones is facilitated by the provision of globally switched +48V phantom power. New circuit designs have improved audio quality, and lowered the overall noise floor of the console and FX sections. An integral universal power supply negates the need for an external power module.

The appeal of the MFXi 8 is enhanced with the addition of a custom designed effect for Karaoke use; this preset was engineered by Lexicon and tuned with expert input from the Karaoke markets in Asia to deliver a great out of the box solution for professional and casual Karaoke usage.

Notes: Soundcraft's MPMi 12 mixer is compact and ideally equipped for live sound applications including fixed installations, houses of worship and portable PA.

The MPMi 12 replaces the MFXi's internal FX send with a third aux send for operators preferring to use external effects. All MPMi mixers include 2 stereo input channels along with a 2 track record output and a 2 track replay input which allows interval music to be easily played from CD, MP3 or other music source.

For increased versatility, the MPMi 12 has two subgroups as well as a main stereo mix, making control of groups of channels much easier to manage. These are supplemented by 3 auxiliary busses which can be used for effects sends or to provide a foldback monitor mix for artists.

The MPMi 12 console uses vertically mounted PCBs which are secured with nutted pots for extra strength, stability and easy servicing. Well spaced controls provide easy access at those critical control moments, enhanced by clear legending which highlights linked or associated functions.

Sound quality is assured by Soundcraft's now legendary GB30 mic preamp and the use of professional condenser microphones is facilitated by the provision of globally switched +48V phantom power. New circuit designs have improved audio quality, and lowered the overall noise floor of the console. An integral universal power supply negates the need for an external power module.

Rack ears are included with the Soundcraft MPMi 12

Notes: The Notepad-5 mixer makes it easy to get legendary Soundcraft sound for your music, podcasts or videos. The Notepad-5 combines professional-grade analog components, renowned HARMAN digital signal processing and a built-in USB audio interface to use with your favourite Mac or PC editing software. Whether you're a singer-songwriter or a podcaster, Notepad mixers offer best-in-class features like renowned Soundcraft mic preamps, so you can bring a level of polish to your creative productions that's sure to impress.

Pristine audio quality. A Soundcraft tradition:
For over 40 years, audio professionals have trusted Soundcraft mixing solutions for pristine sound quality and reliable performance. Notepad series mixers continue this tradition with professional-grade Soundcraft microphone preamps, convenient XLR and 1/4" connectors, and durable metal enclosures built to stand the test of time.

Comfortably familiar. Incredibly powerful:
You'll find yourself right at home with Notepad's traditional channel strip layout. Two EQ controls per channel give you a level of convenience often reserved for larger consoles. A rotary headphone volume fader makes it easy to adjust your personal listening level, while a master level with LED metering provides precise control over your master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series provides a layout that's familiar to audio professionals yet easy to grasp for beginners.

Perfect for Rehearsals, Gigs, and More:
The deceptively compact Notepad mixers easily fit in a gear bag and provide plenty of capability for writing sessions, rehearsals and gigs. Notepad mixers are engineered to provide iconic Soundcraft performance and allow you to connect your favourite gear like microphones, guitars, keyboards and more. With three models available (Notepad-5, -8FX and -12FX), there's a Notepad mixer that's a perfect match-whether you're a singer-songwriter or a small rock ensemble.

Your All-in-one Podcasting Solution:
The combination of premium Soundcraft components and the built-in USB audio interface make Notepad the ideal centre-piece for your podcasting workflow. The Notepad-5 is a great solution if you're just starting out and don't want to compromise on sound quality. From capturing monologues to interviews with multiple panellists, Notepad mixers are designed to help you share your ideas with the world.

Work Seamlessly with Your Mac or PC:
Notepad's integrated USB audio interface allows you to easily record, edit and play projects using your favourite audio software. By combining Soundcraft legendary audio performance with HARMAN signal processing and the built-in USB interface for your computer, Notepad offers the best of both analog and digital audio in a no-compromise solution.

Notes: The Notepad-8FX 8-channel mixer makes it easy to get legendary Soundcraft sound for your music, podcasts or videos. The Notepad-8FX combines professional-grade analog components, renowned HARMAN digital signal processing and a built-in USB audio interface to use with your favourite Mac or PC editing software. Whether you're a singer-songwriter or a podcaster, Notepad-8FX offers best-in-class features like Lexiconr effects, so you can bring a level of polish to your creative productions that's sure to impress.

Pristine Audio Quality. A Soundcraft Tradition:
For over 40 years, audio professionals have trusted Soundcraft mixing solutions for pristine sound quality and reliable performance. Notepad series mixers continue this tradition with professional-grade Soundcraft microphone preamps, convenient XLR and 1/4" connectors, and durable metal enclosures built to stand the test of time.

Comfortably Familiar. Incredibly Powerful:
You'll find yourself right at home with Notepad's traditional channel strip layout. Aux sends and three EQ controls per channel give you a level of convenience often reserved for larger consoles. A rotary headphone volume control makes it easy to adjust your personal listening level, while a master fader level with LED metering provides precise control over your master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series provides a layout that's familiar to audio professionals yet easy to grasp for beginners.

Perfect for Rehearsals, Gigs, and More:
The deceptively compact Notepad mixers easily fit in a gear bag and provide plenty of capability for writing sessions, rehearsals and gigs. Notepad mixers are engineered to provide iconic Soundcraft performance and allow you to connect your favourite gear like microphones, guitars, keyboards and more. With three models available (Notepad-5, -8FX and -12FX), there's a Notepad mixer that's a perfect match-whether you're a singer-songwriter or a small rock ensemble.

Your All-in-One Podcasting Solution:
The combination of premium Soundcraft components and the built-in USB audio interface make Notepad the ideal centrepiece for your podcasting workflow. The Notepad-8FX features Lexicon digital effects to give your production a level of polish typically achieved by recording studios. From capturing monologues to interviews with multiple panellists, Notepad mixers are designed to help you share your ideas with the world.

Iconic Lexicon Digital Effects:
The Notepad-8FX features premium, studio-quality effects by Lexicon that help you achieve truly professional sound without additional plug-ins or equipment. Enhance your projects with reverb, chorus, or delay with tap tempo control, backed by industry-leading signal processing technology built into the Notepad's DSP engine.

Work Seamlessly with Your Mac or PC:
Notepad's integrated USB audio interface allows you to easily record, edit and play projects using your favourite audio software. By combining Soundcraft legendary audio performance with HARMAN signal processing and the built-in USB interface for your computer, Notepad offers the best of both analog and digital audio in a no-compromise solution.

Notes: The Notepad-12FX 12-channel mixer makes it easy to get legendary Soundcraft sound for your music, podcasts or videos. The Notepad-12FX combines professional-grade analog components, renowned HARMAN digital signal processing and a built-in USB audio interface to use with your favourite Mac or PC editing software. Whether you're a singer-songwriter or a podcaster, the Notepad-12FX mixer offers best-in-class features like Lexiconr effects, so you can bring a level of polish to your creative productions that's sure to impress.

Pristine Audio Quality. A Soundcraft Tradition:

For over 40 years, audio professionals have trusted Soundcraft mixing solutions for pristine sound quality and reliable performance. Notepad series mixers continue this tradition with professional-grade Soundcraft microphone preamps, convenient XLR and 1/4" connectors, and durable metal enclosures built to stand the test of time.

Comfortably Familiar. Incredibly Powerful:

You'll find yourself right at home with Notepad's traditional channel strip layout. Aux sends and three EQ controls per channel give you a level of convenience often reserved for larger consoles. A rotary headphone volume control makes it easy to adjust your personal listening level, while a master fader level with LED metering provides precise control over your master output signal. Designed for home studios, rehearsals, live performances, and podcast production, the Notepad series provides a layout that's familiar to audio professionals yet easy to grasp for beginners.

Perfect for Rehearsals, Gigs, and More:

The deceptively compact Notepad mixers easily fit in a gear bag and provide plenty of capability for writing sessions, rehearsals and gigs. Notepad mixers are engineered to provide iconic Soundcraft performance and allow you to connect your favourite gear like microphones, guitars, keyboards and more. With three models available (Notepad-5, -8FX and -12FX), there's a Notepad mixer that's a perfect match-whether you're a singer-songwriter or a small rock ensemble.

Your All-in-One Podcasting Solution:

The combination of premium Soundcraft components and the built-in USB audio interface make Notepad the ideal centrepiece for your podcasting workflow. The Notepad-12FX gives your production a level of polish typically achieved by recording studios. From capturing monologues to interviews with multiple panellists, Notepad mixers are designed to help you share your ideas with the world.

Iconic Lexicon Digital Effects:

The Notepad-12FX features premium, studio-quality effects by Lexicon that help you achieve truly professional sound without additional plug-ins or equipment. Enhance your projects with reverb, chorus, or delay with tap tempo control, backed by industry-leading signal processing technology built into the Notepad's DSP engine.

Work Seamlessly with Your Mac or PC:

Notepad's integrated USB audio interface allows you to easily record, edit and play projects using your favourite audio software. By combining Soundcraft legendary audio performance with HARMAN signal processing and the built-in USB interface for your computer, Notepad offers the best of both analog and digital audio in a no-compromise solution.

Notes: The Signature 12 is a high-performance 12-input small format analogue mixers with onboard effects. It features smooth, premium-quality faders with GBr Series audio routing with flexible pre/post switching on each Aus, and subgroups with powerful routing and switching options as well as dedicated outputs. The console is built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

All Soundcraft Signature Series consoles incorporate Soundcraft's iconic Ghost mic preamps, directly drawn from the company's top-of-the-line professional consoles, to deliver extraordinary audio quality with high headroom, wide dynamic range and exceptional resolution and clarity with a superb signal to noise ratio. They employ Soundcraft's Sapphyre Assymetric EQ for perfectly equalizing every vocal and instrumental element in a mix with the unmistakable musicality inherent in every Soundcraft console, plus the GB Series audio routing technology famous in thousands of live venues worldwide.

They all include a wide variety of built-in Lexicon studio-grade reverb, chorus, modulation and other effects and dbx limiters on the input channels. The consoles offer XLR and switchable Hi-Z inputs that enable guitars, basses and other instruments to be directly connected.

All the consoles come with a 2-in/2-out USB interface. Accompanying the consoles are free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.

In addition, the consoles feature smooth, premium-quality faders with GBr Series audio routing with flexible pre/post switching on each Aux, and subgroups with powerful routing and switching options as well as dedicated outputs. The Signature Series are built using tour-grade robust metal construction and top-quality components and have an internal universal power supply.

Recommmended for: Houses of Worship, Music Venues, Musicians & Bands, Theatres, Tour Sound

Notes: The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range.

The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company's 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

Features
Frame sizes 6+2, 8+2 and 12+2
2 configurable auxiliary buses
XLR-type and 14" metal jack connector sockets
RCA phono stereo playback inputs and record outputs
3-band EQ with a swept mid on mono inputs
2-band EQ on stereo inputs
TRS insert sockets and inserts on all mono inputs and mix output
Ten-segment LED output metering
Intuitive and comprehensive solo system
Headphone output
Easily rack mountable
