Notes: 3:1 is a voltage controlled switch. It allows the user to send one of three input signals to a single output.

Control over the active input allows the user to craft unique rhythmic events from existing gates and clocks within a patch. The module can also function as a gate summer allowing for the creation of polyrhythms from multiple inputs.

Notes: 3:1 is a voltage controlled switch. It allows the user to send one of three input signals to a single output.

Control over the active input allows the user to craft unique rhythmic events from existing gates and clocks within a patch. The module can also function as a gate summer allowing for the creation of polyrhythms from multiple inputs.

Notes: ***B-STOCK: Box opened, product in perfect working order***


ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: ***B-STOCK: Without original box, product has light surface marks but otherwise in perfect working condition.***


ADSR is a four stage linear envelope with two expressive ranges. Each stage can be modified independently allowing for the creation of complex, multi-segment envelopes. Great for modulating filters, VCAs, and oscillators.

Notes: AVert is a dual attenuverter. Each channel offers the ability to attenuate and invert any input signal. The signal present at channel one is normalled to channel 2, allowing for two unique output signals from a single input. Get Inverted.

Dual attenuverter
Attenuates and/or inverts any input signal
Normalling behavior offers two unique outputs for a single input

Dimensions
2 HP
42 mm deep

Current Draw
9 mA +12V
5 mA -12V
0 mA 5V

Notes: AVert is a dual attenuverter. Each channel offers the ability to attenuate and invert any input signal. The signal present at channel one is normalled to channel 2, allowing for two unique output signals from a single input. Get Inverted.

Notes: Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.

Notes: Brst is a voltage controlled burst generator and trigger delay. Upon receipt of a gate signal, Brst will output a stream of triggers. Knobs and CV inputs give the user control over speed and the number of repetitions. Whether you're generating bouncing balls, crafting IDM drum beats, or humanizing a clock signal, Brst will prove an indispensable addition to your rack.

Notes: The 2hp Buff is a buffered multiple capable of splitting an input signal to multiple outputs. Due to its active architecture, inputs retain their full integrity as they are copied to multiple destinations. One input signal can be copied to six outputs, or two inputs can be copied to three outputs each. The Buff is especially great for splitting pitch or audio signals where signal integrity is critical. Keep your signals in shape with Buff.

Notes: The 2hp Buff is a buffered multiple capable of splitting an input signal to multiple outputs. Due to its active architecture, inputs retain their full integrity as they are copied to multiple destinations. One input signal can be copied to six outputs, or two inputs can be copied to three outputs each. The Buff is especially great for splitting pitch or audio signals where signal integrity is critical. Keep your signals in shape with Buff.

Notes: Clk is a voltage controlled clock generator with all the features a master clock needs. It has an extremely wide range from ten seconds between pulses well into audio rate. In addition, the pause button and CV input provide an expressive feature that is all too often missing in a modular setup. Stop using LFOs or other modulation sources for your master clock, and let Clk do what it's best at.

Notes: ***B-STOCK: Without original box, product has light surface marks but otherwise in perfect working condition.***


Clk is a voltage controlled clock generator with all the features a master clock needs. It has an extremely wide range from ten seconds between pulses well into audio rate. In addition, the pause button and CV input provide an expressive feature that is all too often missing in a modular setup. Stop using LFOs or other modulation sources for your master clock, and let Clk do what it's best at.

Notes: Clk is a voltage controlled clock generator with all the features a master clock needs. It has an extremely wide range from ten seconds between pulses well into audio rate. In addition, the pause button and CV input provide an expressive feature that is all too often missing in a modular setup. Stop using LFOs or other modulation sources for your master clock, and let Clk do what it's best at.

Notes: The 2hp DC is a voltage offset generator. It creates three channels of offset voltages, each with a different output range. Great for manually controlling CV inputs through a known range or summing together with CV signals to act as a bias. With the addition of a multiple, you can control several modules at once with a single knob. Take control with DC.

Notes: The 2hp DC is a voltage offset generator. It creates three channels of offset voltages, each with a different output range. Great for manually controlling CV inputs through a known range or summing together with CV signals to act as a bias. With the addition of a multiple, you can control several modules at once with a single knob. Take control with DC.

Notes: EG is a full featured two-stage envelope generator. In addition to a colossal range from 3ms to 11 minutes per stage, EG features the ability to switch between linear and exponential curves on the fly, a built-in attenuator, and CV over attack and decay. Boasting more features than modules five times its size, EG can fill any envelope-sized gap in your system.

Notes: Logic is a 2 channel, boolean gate operator. It provides two unique logic operations: AND and OR. The AND Channel is useful for gating existing rhythmic events within a patch.

Conversely, The OR channel is well suited for mixing two timing events down to a single output, creating interesting polyrhythms and syncopations from existing gate signals.

Notes: Logic is a 2 channel, boolean gate operator. It provides two unique logic operations: AND and OR. The AND Channel is useful for gating existing rhythmic events within a patch.

Conversely, The OR channel is well suited for mixing two timing events down to a single output, creating interesting polyrhythms and syncopations from existing gate signals.

Notes: LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.

In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.

Dimensions
2 HP
42 mm deep

Current Draw
20 mA +12V
20 mA -12V

Notes: LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.

In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.

Dimensions
2 HP
42 mm deep

Current Draw
20 mA +12V
20 mA -12V

Notes: MIDI is a plug and play solution for interfacing with your computer or MIDI hardware. Four modes provide monophonic, duophonic, dual mono, and quad trigger operation.

MIDI clock, CC messages, and note on messages are all easily accessible between the four modes. The status LED provides clear indication of MIDI data being received by the module. Class compliant MIDI device on Mac/PC/Linux. Get connected with MIDI.

Notes: MIDI is a plug and play solution for interfacing with your computer or MIDI hardware. Four modes provide monophonic, duophonic, dual mono, and quad trigger operation.

MIDI clock, CC messages, and note on messages are all easily accessible between the four modes. The status LED provides clear indication of MIDI data being received by the module. Class compliant MIDI device on Mac/PC/Linux. Get connected with MIDI.

Notes: ***B-STOCK: Box opened, product in perfect working order***


Rnd is a random voltage generator and random gate source with an internal clock.

The quantized and smooth outputs are completely independent, and each feature an attenuator to fine tune the output voltage between 0V and 10V. This allows for a musically useful range to be defined. When externally clocked, random gates erupt from the gate output.

Great for modulation and chaotic rhythmic events, Rnd is a universal solution for adding unpredictability to your system.

Notes: Rnd is a random voltage generator and random gate source with an internal clock.

The quantized and smooth outputs are completely independent, and each feature an attenuator to fine tune the output voltage between 0V and 10V. This allows for a musically useful range to be defined. When externally clocked, random gates erupt from the gate output.

Great for modulation and chaotic rhythmic events, Rnd is a universal solution for adding unpredictability to your system.

Notes: Rout is a voltage controlled gate switch. The signal present at the input can be sent to one of four outputs. Great for splitting a pattern across multiple voices or creating variations in a patch with a single gate source, Rout is a powerful addition to any rack's rhythm section.

Notes: Rout is a voltage controlled gate switch. The signal present at the input can be sent to one of four outputs. Great for splitting a pattern across multiple voices or creating variations in a patch with a single gate source, Rout is a powerful addition to any rack's rhythm section.

Notes: Great for generating random voltages from white noise, arpeggios from sawtooth waves, and downsampling audio signals.

Notes: Great for generating random voltages from white noise, arpeggios from sawtooth waves, and downsampling audio signals.

Notes: Unity is a dual unity mixer with two sets of three inputs. Its versatile normalling behaviour allows it to function as a six-to-one mixer, or two three-to-one mixers. Three modes of operation provide ideal behaviour for audio, control voltage, or both.

Averaging Mode allows the user to mix audio signals without losing their relative loudness. Unity Mode is great for mixing control signals in situations where you want to add vibrato to a sequence, or create a chaotic modulation source out of LFOs and envelopes. Split Mode sets each channel to a different mode, allowing for mixing CV on one channel and audio on the other. Unite your system with Unity.

Notes: ***B-STOCK: Box damaged, product unused & in perfect condition***


The 2hp VCA is a dual, linear VCA. It uses the renowned 2164 SSM architecture, giving it extremely low distortion and high quality audio outputs. With a CV input attenuator, and DC-coupled inputs this is your new go-to module for voltage controlled amplification of audio or CV.

Notes: The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.

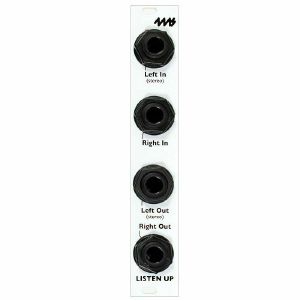

Notes: The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. It connects to one or two Listen modules and/or WAV Recorder module with the included 3-pin cables. There are four 1/4" jacks arranged in left/right pairs. The left jack of each pair can be used as a TRS stereo jack if the right jack is unpatched.

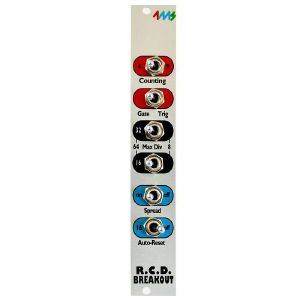

Notes: The RCD Breakout adds features to the Rotating Clock Divider module. Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.

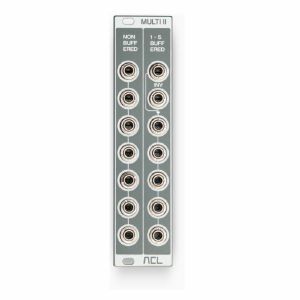

Notes: The ACL Multi II is a 'multiple' module for connecting single audio or CV sources to multiple destinations. It has a wide variety of applications, such as precise synchronised control of multiple tone-generating VCO modules, simultaneous control of multiple VCF modules with a single envelope module, and many more creative modulation-related uses. All this is made possible because our multiple module actually contains two discrete modules - one passive and one active.

The non-buffered passive module lets you distribute one input signal to up to six freely interchangeable outputs. Some of the most rewarding uses of this are to send one CV control voltage input to six different modules, or distributing an audio source signal to several destinations. Of course, there are many more examples.

The buffered active module features two high-impedance inputs, one inverting and one non-inverting, and five low-impedance outputs. The main purpose of the active section is to stabilise the pitch of up to five VCO modules, but buffered input signal can be added, so the active multiple can be used as a subtractor too, allowing you to apply a modulator such as an LFO or a static CV source to change the pitch of them altogether.

The presence of inverting and non-inverting also has some fun modulation applications, as it's possible to subtract audio and/or CV signals from each other. For example, this could be used to subtract a filtered signal from the unfiltered one, thus inverting the filter's effect (i.e. turning a low-pass filter into a high-pass).

And though the active section is primarily designed with CV in mind, it can do some really creative stuff to audio waveforms too. For example, the inverting and non-inverting buffered inputs can function as a waveform mixer or subtractor, generating unusual results with audio signals and modulation signals alike.

Of course, while this module is designed with creativity in mind, we want stability too. To ensure our module reliably delivers minimal-error copies of the incoming signals, and thus that every melody and musical interval stays in tune, we use precision low-tolerance resistors and low-noise/low DC-drift/Offset Operational Amplifiers.

Width 6 HP

Installation depth:

22 mm deep
Current Draw:

20 mA +12V
20 mA -12V
0 mA 5V

Notes: ADDAC System's smallest buffered multiples allow you to connect one source to its input and have it distributed through all of the 3 adjacent outputs. You get two sets of four connectors. and it can do both audio and CV!

Notes: ADDAC System's 1/4 to 1/8 inch adapter allow you to connect one 1/4 inch jacks to an 1/8 inch one right in from your rack- now you can leave all those cable adapters behind.

Mechanical:
- Format: Eurorack
- Width: 4 HP
- Depth: 3.5 cm

Electrical:
- Passive

Notes: The ADDAC213B is the second pair of modules from ADDAC's Eurorack Bridge system.

A pair of ADDAC213Bs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Two ADDAC213B modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables. Less clatter, less spaghetti- more space of your fingers on those knobs!

ADDAC213Bs always come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time. The modules can be installed in normal position or a 180 degree position to fit any need.

As an Expansion to an ADDAC213A.

Each ADDAC213B connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A.

Up to 2 ADDAC213B can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

If you're looking for a simple one-cable bridge between your various cases, then look no further than the ADDAC213A.

Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!

Each module can be installed in normal position or at 180 degrees.

Comes with a 50cm ribbon cable. Custom sizes are available upon request.

Mechanical:
. Format: Eurorack
. Width: 3 HP
. Depth: 2.5 cm

Electrical:
Passive / Does not draw current
Ribbon Cable: 50cm or 100cm ribbon cable

Notes: A pair of ADDAC213Cs can be used in standalone to send/receive 8 CV or audio signals between different points inside the same case or as an expansion to the main pair of Eurorack Bridge modules, the ADDAC213As.

Standalone use:

Two ADDAC213C modules can be connected to each other with the use of a single ribbon cable and then used inside a case to carry signals between distant points without the need for long cables. Less clutter, less spaghetti, more space of your fingers on those knobs!

ADDAC213Cs always come in pairs. A single pair can send & receive up to 8 CV or audio signals between different points in your case at the same time.

Do you have modules that you often use together in different areas of your case? Would you prefer that each row's cables don't mingle with cables from other rows? Grab yourself a pair of ADDAC213s.

As an Expansion to an ADDAC213A:
Each ADDAC213C connected to the backside of an ADDAC213A adds 8 more channels to the main bridging functionality of the ADDAC213A.
Up to 2 ADDAC213C can be connected to an ADDAC213A module, expanding the bridging between two difference cases to a total of 24 channels.

If you're looking for a simple one-cable bridge between your various cases, then look no further than the ADDAC213A.
Between the ADDAC213A pair and the ADDAC213B, your cases never looked so elegantly connected together!
Check ADDAC213A for more information:
https://www.addacsystem.com/en/products/modules/addac200-series/addac213a

Price is for a pair of modules (2 modules) including two 50cm ribbon cables, only one is used to connect the two ADDAC213C together but two are necessary when connecting the two ADDAC213C to two ADDAC213A.

Comes with a 50cm ribbon cable. Custom sizes are available upon request.

Mechanical:
. Format: 1U Eurorack
. Width: 22HP
. Depth: 2.5 cm

Electrical:
Passive / Does not draw current
Ribbon Cable: 50cm or 100cm ribbon cable (custom sizes available upon request)

Notes: Following ADDAC System's T-Networks series, the importance of having the right input signal for firing drum modules or envelopes was realised. Gates and Triggers are often looked at as similar signals but at times it really makes a difference and results will change drastically depending if a Gate or a Trigger is fed to the input of such modules.

This led to the simple yet effective Gate to Trigger.
A four channel converter with bypass switch for each channel.

Any input Gate will be limited to a 1ms Trigger.

Tech Specs:
3HP
2.5 cm deep
10mA +12V
10mA -12V

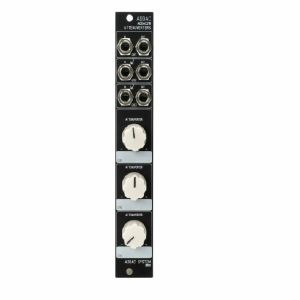

Notes: Another addition to ADDAC200's CV Utilities.

This module features 3 independent Attenuverters each with its input, output and 13mm knob.

White areas allow the user to write down what is connected to each channel.

Channel 1 is normalled to Channels 2 and 3.

40 mA +12V
40 mA -12V
0 mA 5V
25 mm deep

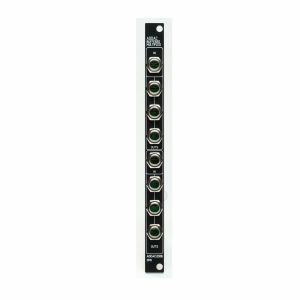

Notes: ADDAC219IN was designed to replace bulky 1/4 inch jacks when plugging external stereo gear into the modular realm.

Using a 3.5mm TRS stereo jack input, the module splits the TRS stereo signal into 2 mono outputs (Left + Right) while also converting the line input to synth level.

There are 2 independent sections allowing for two stereo sources to be connected.

Tech Specs: 3HP, 4 cm deep, 20mA +12V, 20mA -12V

Notes: ADDAC219OUT was designed to replace bulky 1/4-inch cables when plugging external stereo gear to the modular realm.

It merges 2 TS mono signals (Left + Right) into a TRS stereo output while also converts the synth inputs to line level.

There are 3 independent sections allowing for three stereo sources to be connected.

Tech Specs: 3HP, 1.5 cm deep, Passive module

Notes: While ADDAC were working on the new VC Stompboxes several expression pedals were tested and it became clear that most often, while playing a modular system, your hands are busy.
It's also normal to have an expression pedal lying around somewhere, so ADDAC have brought these back, cleaned up the dust and put them to good use.
This module allows the connection of any standard expression and sustain pedal.

The expression pedal action can be fine-tuned with Range and Offset knobs.
Range defines the voltage range (-10v, +10v).
Offset transposes the range by (-5v, +5v).
Two leds, plus and minus, monitor the CV Output
Positive and inverted output jacks.
The sustain pedal action will generate a gate signal on the gate output.
One led monitors this output.
The module also features a bus board +5v Adaptor, this will be able to provide +5v to any bus board.
This feature can be removed through a jumper on the back of the module.

Specs:
- Width: 4 HP
- Depth: 4 cm
- Max current: 20mA
. Bus Board Cable: 8 × 2 IDC (Doepfer style) connector

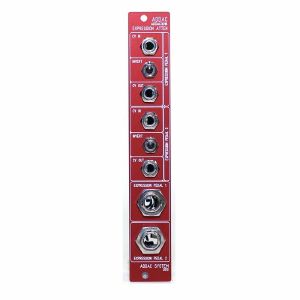

Notes: Passive dual expression pedal attenuator.

Plug any CV or audio source through it and control its amplitude through any standard expression pedal.

Invert switch for inverting the expression pedal action.

Specs:
- Passive Module
- Width: 4 HP
- Depth: 3 cm

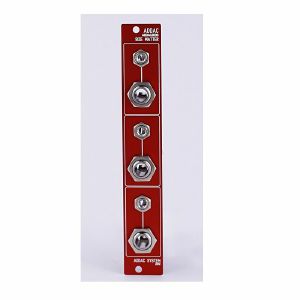

Notes: Passive dual sustain pedal switcher.

Plug any CV or audio source through it and control its state (on / off) through any standard sustain pedal.

Specs:
- Passive Module
- Width: 4 HP
- Depth: 3 cm

Notes: Take up to two CV signals and this passive module converts them to TRS outputs in order to control effects pedal modulation inputs, with attenuation on both channels. Simple, straightforward stuff.

Supplier's Notes:
ADDAC309 CV to Expression allows a simple and straight forward connection between modular and effect pedals that features expression pedal TRS inputs.

Instead of using an expression pedal into the effects pedal the user can use this module in between a CV source and the Effects pedal to be controlled.

This is a great way to control the available parameters on the effects pedals straight from a CV source.

ADDAC309 features 2 channels each with a CV Input with attenuator and a 1/4" jack output.

This is a passive module, the power needed for operation is taken from the pedal power instead of the modular frame, this allows for perfect matching of the pedal's operating voltage which can range from 3.3v to 9v.

Tech Specs:
4HP
3,5cm deep
Passive module

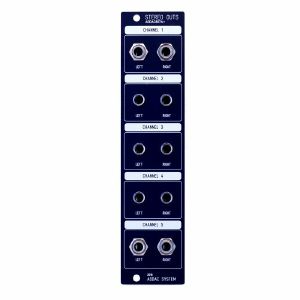

Notes: Dedicated expansion for the ADDAC807 VC Summing Mixer

Features 5 individual track post fader stereo outputs.

6HP
2 cm deep
0mA

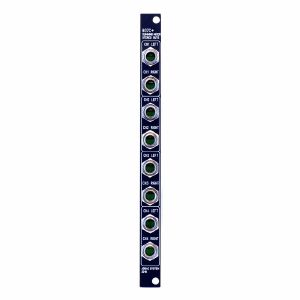

Notes: Dedicated expansion for the ADDAC807C VC Summing Mixer

Features 4 individual track post fader stereo outputs.

2Hp
2 cm deep
0mA

Notes: The CVADDER-HQ is a precision adder especially for adding 1V/octave (pitch-controlling) CVs. This makes it possible e.g. to transpose a sequence. Compared to general purpose CV mixers (like POLAMIX), this module does the summing of the CVs very precise (within a few millivolts), so the desired pitch is not affected.

The module offers four CV inputs where three of them are summed, and the CV at the fourth input is subtracted - meaning "transposition downwards".

This module also allows transposing the incoming CV by one or two octaves or a variable offset by buttons.

A separate output provides the voltage of the internal transposition (+1, +2 octaves / free).

If the transposition buttons are not necessary and you prefer to have a dual precision adder, take a look at the 2CVADD-HQ module.

Notes: This module offers a four-quadrant-control for CVs via its joystick.

The module can act either as CV source at its four outputs, or as four-quadrant attenuator for the CV inputs. Beyond this, a mix of the input CVs according to the joystick position is provided separately.

Another feature is a gate output that is controlled by pressing the joystick handle.

The joystick remains in each position - there is no automatic "return to centre".

The JOYSTICK module can operate in two different modes:

Quadrants independent: In this mode, all outputs are zero when the joystick is in centre position
Overlapped: In this mode, each quadrant output fades from full to zero over the whole range to the opposite corner.

Together with a quad VCA / mixer (available soon from tangible waves) you can use the JOYSTICK also for mixing/blending four independent audio sources.
